Schneider Electric XB4AB2 Ø22 red mushroom Emergency stop with contact block
Normally In Stock
Code: 85838
Schneider XB4AB2 mechanical latching Emergency switching off push-button 1 NC Turn to release Chromium plated metal Round Red mushroom Ø 40 mm, unmarked Standard contacts 1 Harmony XB4 10 A EN/IEC 60947-5-1 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix
Condition: New
Normally Stocked$110.87
Sale Price
$92.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ø22 red mushroom Emergency stop with contact block
Specifications
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Amperage
6 Amp
(Switching-Indication) Operation
Slow-Break
(Switching-Indication) Composition
Silver Alloy(Ag/Ni)
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) Color
Red
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Composition
Zamak
(Switching-Indication) IP Rating
IP 66
(Switching-Indication) Contact Configuration
1 NC
(Switching-Indication) Operation
Turn To Release
(Switching-Indication) Operation
Latching
Manufacturer
Schneider Electric
Component
Mushroom Head
Features
XB4/ZB4 22mm push buttons are for industrial applications
XB4/ZB4 operators have chromium plated metal bezels that connect to a fully metal mounting collar

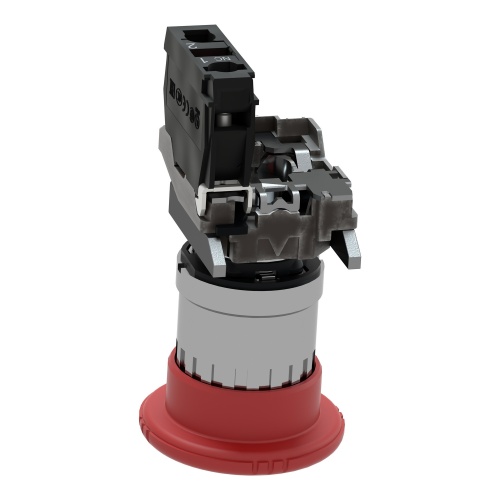

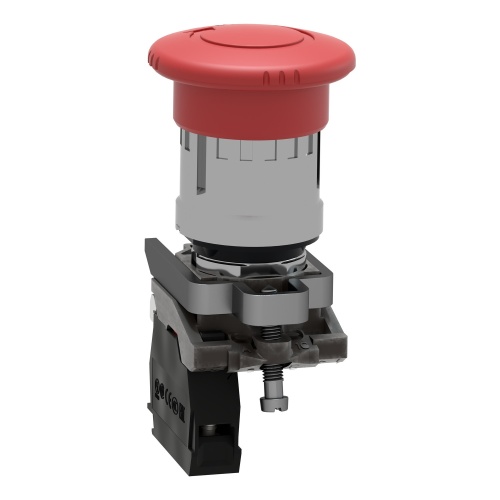

Operator is a turn to release push button with a 40mm red mushroom button
The operator has one normally closed contact
Contact has UL A600, UL Q600, IEC AC15 and IEC DC13 contact ratings
The mushroom button is NEMA 4, 4X and 13 rated
Turn to release mushroom button is 1.85 inches tall, 1.57 inches wide and 3.23 inches deep
The push button assembly weighs 0.26 lbs

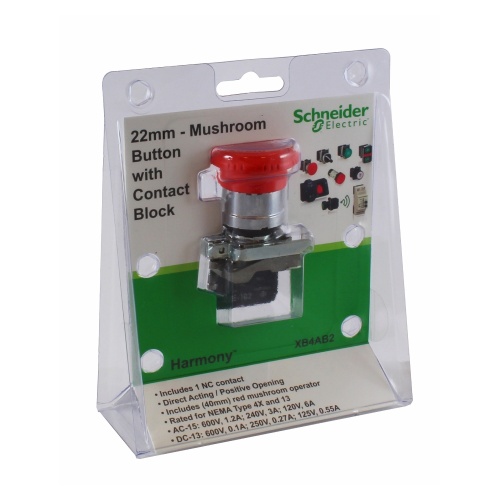

This point of purchase product is packaged in a blister pack
Push button is UL Listed and CSA certified,\It is ideal for machine builder industry applications such as automotive, textile and wood
It is also suitable for use in public works, building and airport.\,\This product meets EN/IEC 60947-5-4, EN/IEC 60947-1, IEC 60364-5-53, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C8201-5-1, UL 508 and JIS C8201-1 standards.\,\It is installed into a Ø 22mm panel cutout.\,\Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines and processes.\,\The modular range of Ø 22mm metal control and signaling units combine simplicity of installation, modern standard and flush mounted design.\
