Code: 85788

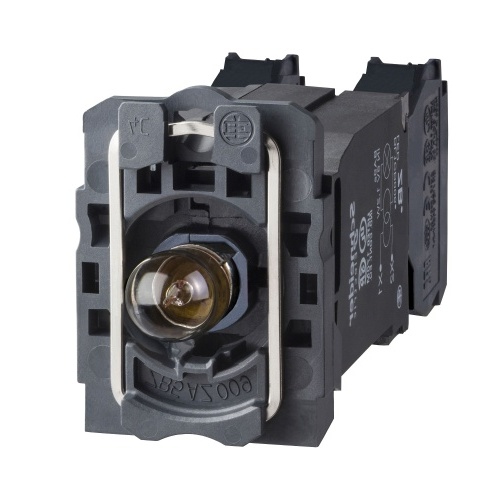

Schneider Electric ZB5AW045 Light Module with body/fixing collar with BA9s incandesc. bulb 220...240V 1NO+1NC
Normally In Stock
Schneider ZB5AW045 220-240 V AC 50/60 Hz Complete body/contact assembly and Light Module 1 NO + 1 NC Incandescent BA 9s Standard Steady 1 Harmony XB5 Standard 10 A EN/IEC 60947-5-1 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15,
Condition: New
CALL FOR LEAD TIME$170.84
Sale Price
$142.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Light Module with body/fixing collar with BA9s incandesc. bulb 220...240V 1NO+1NC
Specifications
(Switching-Indication) Size
22 mm
(Switching-Indication) Amperage
6 Amp
(Switching-Indication) Profile
Standard
(Switching-Indication) Operation
Slow-Break
(Switching-Indication) Composition
Plastic
(Switching-Indication) Composition
Silver Alloy(Ag/Ni)
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Contact Configuration
1 NO + 1 NC
(Switching-Indication) Illumination
Illuminated
Sub Component
Light Module
Manufacturer
Schneider Electric
Component
Accessories
Features
This light block allows fast and easy replacement and configuration of your signaling units
It is easily installed and replaced on compatible illuminated push button or selector switch units
It is assembled via clips and connected with simple screw-clamp connections
It enables visual distinction of signaling units via illumination by BA9s base Integral LED
It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
