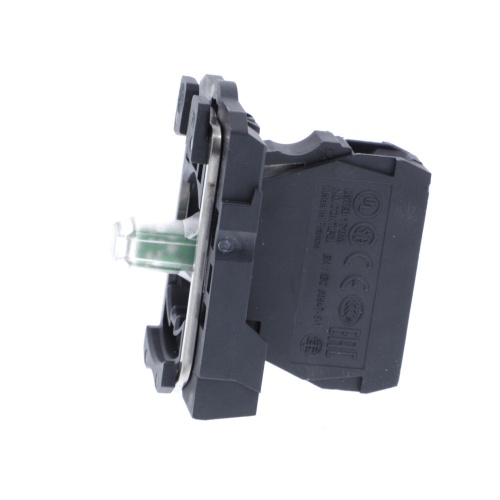

Schneider Electric ZB5AVG5 orange Light Module with body/fixing collar integral LED 110...120V
Code: 85715
Schneider ZB5AVG5 110-120 V AC 50/60 Hz Complete body/Light Module assembly Protected LED Integral LED Orange Steady 1 Harmony XB5 6 kV on contact (on metal parts IEC 61000-2-6, 8 kV in free air (in insulating parts IEC 61000-2-6 600 V 3EN 60947-1 ZB5 Plastic Screw clamp terminal
This product is now obsolete from the manufacturer

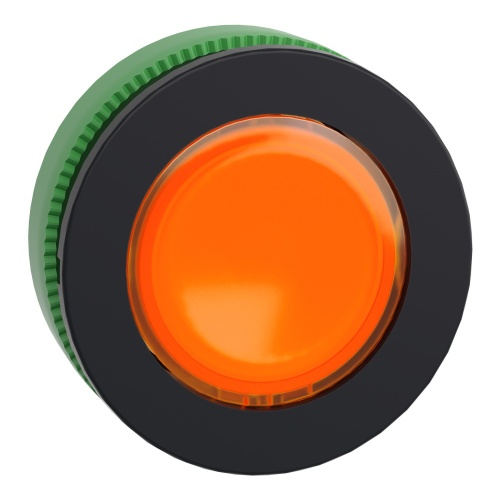

Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.
Related Products
Replacement Products
Description
orange Light Module with body/fixing collar integral LED 110...120V
Specifications
(Switching-Indication) Size
22 mm
(Switching-Indication) Composition
Plastic
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) Color
Orange
(Switching-Indication) Current Consumption
14 mAmp
Manufacturer
Schneider Electric
