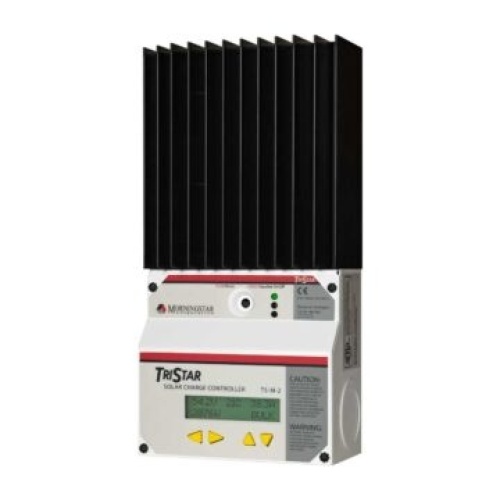

Morningstar TS-60 Charge Controller 12/24/48V 60A
Normally In Stock
Code: 8571
Morningstar TS-60 TriStar Charge Controller 60 amp, 12, 24 or 48 volt indoor rated three function charge controller. LED's for status, alarms, and faults. Does not include meter. Meter sold separatly.
Condition: New
Usually ships Same Day or Next Day$368.64
Sale Price
$307.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Morningstar TriStar TS-60 Charge Controller 60 amp, 12, 24 or 48 volt charge controller provides solar battery charging, load control or diversion regulation. Controller operates in on of the modes at a time. Two or more controllers may be used for multiple functions. Optional meters sold separatly. Controller is fully protected from reverse polarity, over current, short circuit, overvoltage and high temperature. 3 LED's for status, alarms, and faults. Pushbutton for manual reset and start/stop battery equalization or load disconnect. DIP switches for different digital presets and custom setting by RS-232 connection to computer along with data logging and remote monitoring. PWM algorithm for increased battery capacity and battery life. (LVD) low voltage disconnect capable with 2 controllers. 5 year warranty.
Specifications
(Charge Controller) Low Voltage Disconnect
Yes
Manufacturer
Morningstar
(Charge Controller) Voltage
12 Volt
(Charge Controller) Voltage
24 Volt
(Charge Controller) Voltage
48 Volt
(Charge Controller) Amperage
60 Amp
Features
Built for reliability and performance, with an oversized heatsink and overspec’d components. Fully-rated for operation at temperatures up to 45C.

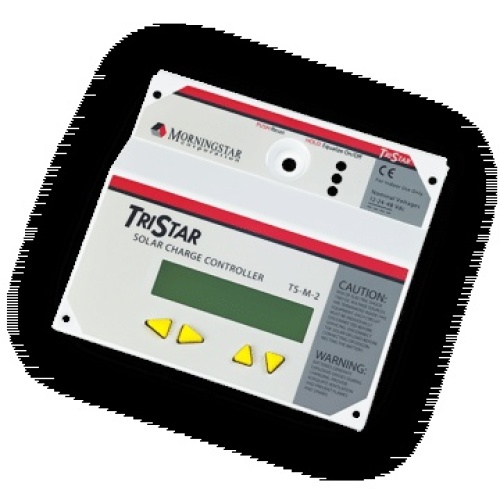

More information with LED indicators. Optional meter displays extensive system and controller information in five languages
automatic self-test and
reset.
Communications capability with RS-232 port, connects to a PC for custom settings, data logging, remote monitoring and control.
SNMP monitoring supported when used with Ethernet MeterBus Converter so you can view system current, voltages, and alerts in your network management system.
Fully adjustable with DIP switches for seven digital presets. Additional
custom setting via RS-232.
Extensive electronic protection against reverse polarity, short circuits,
