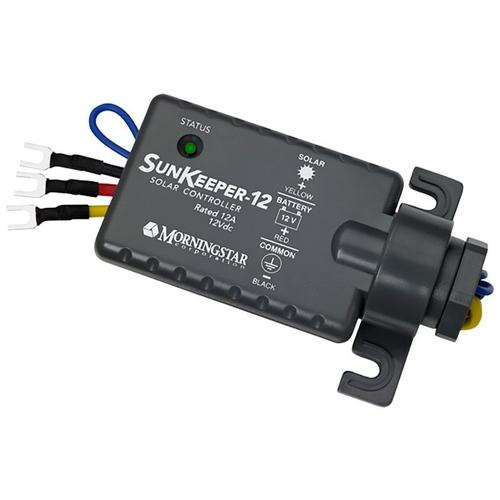

Morningstar SK-12 Charge Controller 12V 12A
Normally In Stock
Code: 8560
Morningstar SK-12 SunKeeper Charge Controller 12 Amp, 12 volt economical charge controller outdoor rated. Maximizes battery life. Includes LVD.
Condition: New
Usually ships Same Day or Next Day$116.28
Sale Price
$96.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Morningstar SunKeeper SK-12 Charge Controller 12 Amp, 12 volt regulated output to maximize battery life. Rated for hazardous locations, highly reliable and easy to install. Protects from overcurrent, short circuits, and reverse polarity. Includes (LVD) Current compensated low voltage disconnect. Max wire size #14 AWG. 5 year warranty.
Specifications
(Charge Controller) Low Voltage Disconnect
Yes
Manufacturer
Morningstar
(Charge Controller) Voltage
12 Volt
(Charge Controller) Amperage
12 Amp
Features
High Temperature Rated
Rated to 70°C to operate in high temperatures at the solar module. More reliable than controllers mounted inside the junction box. Uses very low on-resistance power MOSFET’s. No need to re-rate.
Outdoor Rated Rugged Design
ETL approved for outdoor use without an additional enclosure. Rugged IP65, UV resistant case. Epoxy encapsulated printed circuit board and watertight connection to the module junction box.
Ideal for Oil/Gas Applications
Specifically designed for solar power systems in the oil/gas industry. Approved for use in Class 1, Division 2, Groups A,B,C,D.
Extensive Electronic Protections
Fully protected against reverse polarity, short circuit, overcurrent, lightning and transient surges, high temperature and reverse current at night.
