Code: 85475

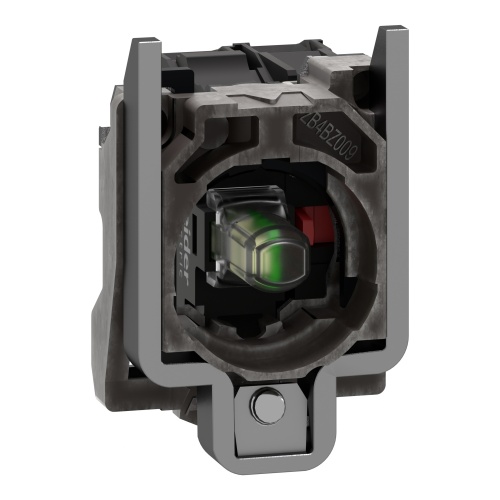

Schneider Electric ZB4BW0B12 white Light Module with body/fixing collar with integral LED 24V 1NC
Normally In Stock
Schneider ZB4BW0B12 24 V AC/DC 50/60 Hz Complete body/contact assembly and Light Module 1 NC Protected LED Integral LED White Standard Steady 1 Harmony XB4 Standard 10 A EN/IEC 60947-5-1 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles,
Condition: New
CALL FOR LEAD TIME$100.42
Sale Price
$83.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
white Light Module with body/fixing collar with integral LED 24V 1NC
Specifications
(Switching-Indication) Color
White
(Switching-Indication) Size
22 mm
(Switching-Indication) Amperage
6 Amp
(Switching-Indication) Profile
Standard
(Switching-Indication) Operation
Slow-Break
(Switching-Indication) Composition
Silver Alloy(Ag/Ni)
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) Composition
Zamak
(Switching-Indication) Current Consumption
18 mAmp
(Switching-Indication) Contact Configuration
1 NC
Sub Component
Light Module
Manufacturer
Schneider Electric
Component
Accessories
Features
Quick and easy assembly and disassembly
Robustness to withstand harsh environments
Various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
