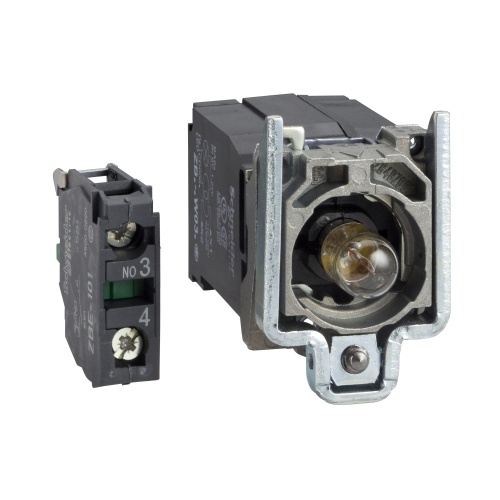

Schneider Electric ZB4BW031 Light Module with body/fixing collar with BA9s incandesc. bulb 110...120V 1NO
Normally In Stock
Code: 85446
Schneider ZB4BW031 110-120 V AC 50/60 Hz Complete body/contact assembly and Light Module 1 NO Incandescent BA 9s Standard Steady 1 Harmony XB4 Standard 10 A EN/IEC 60947-5-1 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 12
Condition: New
Normally Stocked$131.99
Sale Price
$109.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Light Module with body/fixing collar with BA9s incandesc. bulb 110...120V 1NO
Specifications
(Switching-Indication) Contact Configuration
1 NO
(Switching-Indication) Size
22 mm
(Switching-Indication) Amperage
6 Amp
(Switching-Indication) Profile
Standard
(Switching-Indication) Operation
Slow-Break
(Switching-Indication) Composition
Silver Alloy(Ag/Ni)
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) Composition
Zamak
Sub Component
Light Module
Manufacturer
Schneider Electric
Component
Accessories
Features
This Harmony XB4, light block with body/fixing collar isoperates with BA9s base Integral LED
It has 1 x NO contact and a metal body and is compatible with Harmony XB4 pilot lights
This light block allows fast and easy replacement and configuration of your signaling units
It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections
It enables visual distinction of signaling units via illumination by BA9s base Integral LED
It protects operators from unexpected contact with live circuits thanks to its IP20 protection index
It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery
Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
