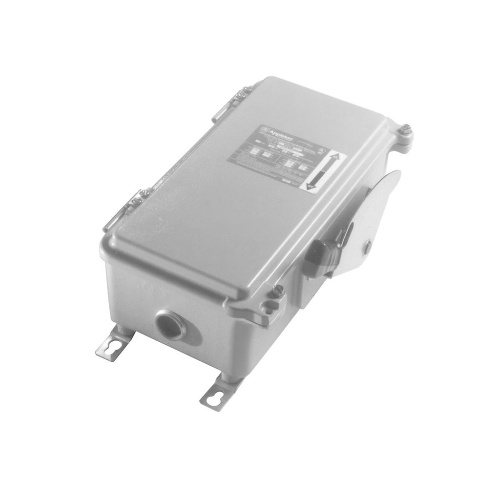

Factory sealed

no external seals required

Available in fused and unfused versions

Insulated, dual-color polymer operating handle clearly indicates the switch being energized. Ergonomically designed handle is made of high-impact polymer material for exceptional ruggedness, durability and corrosion resistance

Removable hinged cover allows for ease of installation and maintenance

Short circuit withstand rated to 200,000 RMS symmetrical amperes (Class J fusing)

Short circuit withstand rated to 10,000 RMS symmetrical amperes (unfused)

Use Class J fusing on fused units (fuses not included)

Conduit entry is drilled and tapped to 1-1/2#8221

. Reducer bushings 1-1/2#8221

to 1-1/4#8221

and 1-1/2#8221

to 1#8221

provided at no additional cost

Stainless steel key-hole mounting feet for easy installation

Unit is equipped with defeatable door interlock which allows emergency access when switch is energized

Cover can be padlocked closed

Operating handle can be locked in the OFF position with provision to lock in the ON position
