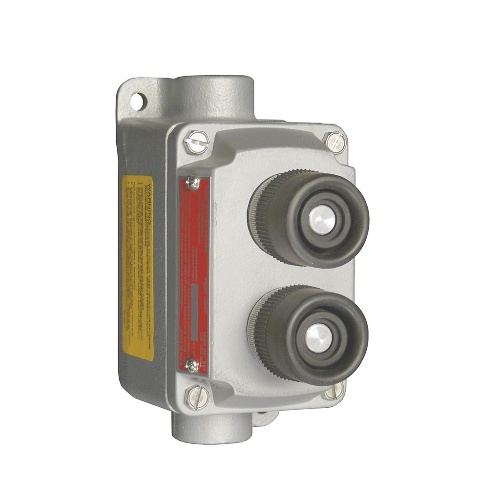

Explosionproof, Dust-Ignitionproof. Ideal for installation in chemical and petrochemical plants, refineries and other process industries

Factory sealed, eliminates the need for adding sealing fittings and compound at each conduit entrance.

EFD/EFDB factory sealed pilot lights are supplied with red jewel/guard assembly and 120 Vac/Vdc, 50/60 Hz, 6 Watt, Type 6S6 lamp

EFD/EFDB factory sealed selector switches furnished with nylon cam-operated, heavy-duty push buttons for either 2-position or 3-position maintained contact operation. They offer high thermal and arc resistance, high dielectric strength

EDS factory sealed push buttons are available with dust cap for use in areas where excessive dust, moisture or corrosive conditions are encountered. Enclosed stainless steel helper spring prevents accidental operation of push button in severe vibration

Heavy-duty push buttons, 10 Amp, 600 Vac rated

EFD/EFDB momentary push buttons are supplied with lockout type guards as standard. A hole in the guard will accept locks with up to 1/4#8221, Permits locking of push button to prevent unauthorized operation

EFD/EFDB backbox supplied with internal ground screw. Accurately tapped, tapered hubs for tight, rigid joints and ground continuity. Smooth, rounded integral bushing in each hub protects conductor insulation

Corrosion resistant captive stainless steel hex head cap screws hold covers to body

Stainless steel push button shaft operates within stainless steel bushing assuring long, maintenance free operation

Push button and selector switch contacts are silver cadmium oxide which are #8221,#8221, in lower phenolic chamber isolated from corrosive elements. Assures positive contact and long, trouble-free operation

Clearly marked terminals with brass screws assure quick, easy wiring. Pigtail leads from push buttons are factory sealed in sealing well
