Code: 843275

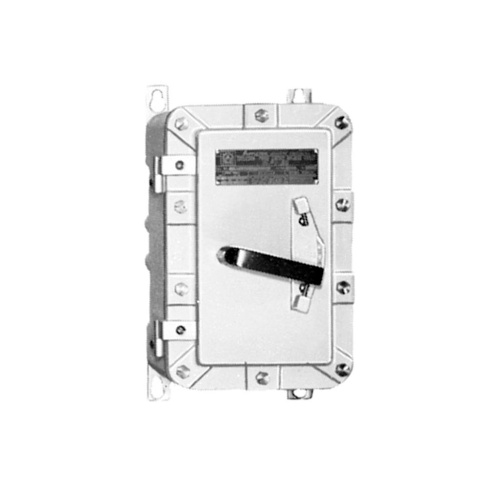

Appleton™ EB2FB2W90 2P 90A CIRCUIT BREAKER FDB
Normally In Stock
Appleton™ EB2FB2W90 2P 90A CIRCUIT BREAKER FDB
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM SOLA FOR PRODUCT TO SHIP
$5873.88
Sale Price
$4894.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Appleton™ EB2FB2W90 2P 90A CIRCUIT BREAKER FDB
Specifications
Component
Circuit Breaker
Features
Explosionproof, dust-ignitionproof
Corrosion-resistant, non-sparking copperfree aluminum with two-coat epoxy finish. Shafts and bushings are stainless steel (300 Series)
Interior components removable as an assembly to facilitate wire pulling
Ample space for wiring and installation of accessories
Breaker handle has lock bracket that can be padlocked in ON or OFF position, accommodates up to three padlocks
Tapped, plugged openings provided as standard for optional drain and breather
Hinged (left side), removable covers secured by stainless steel (300 Series) hex-head, screwdriver-slotted captive "quick bolts"
Mating surfaces precision milled
Easy mounting, four removable mounting brackets have keyhole openings. Straps are steel with triple-coat finish
Positive-operating breaker handle has spring steel actuator that self-locates on breaker handle to prevent damage to breaker toggle if door is closed without aligning door with breaker toggle position
Each standard feed-thru opening (one at top and one at bottom) has an aluminum reducing bushing to protect conductor insulation
