Code: 843

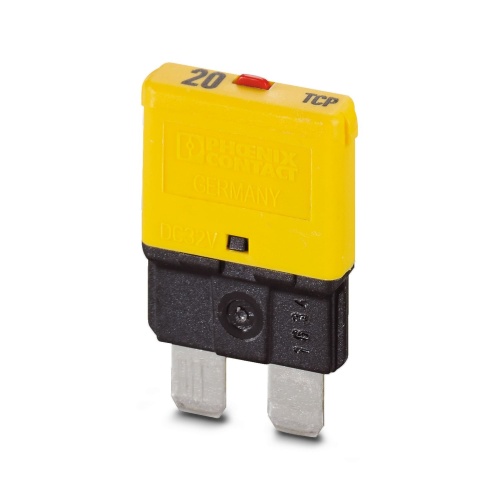

Phoenix Contact 0700020 Thermal device circuit breaker TCP 20/DC32V
Normally In Stock
TCP 20/DC32V Phoenix 0700020 Thermal device circuit breakers 20 Amp on base element Protective Devices
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$16.81
Sale Price
$14.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 0700020 A thermal circuit breaker with a nominal current of 20 amps and operating voltage of 32 volts features an automatic fuse that trips in response to excessive heat, is mounted on the base element, and has a maximum rated current of 20 amps.
Specifications
Breaker Amperage Rating
20 Amp
Breaker Number of Poles
Single Pole
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Breaker Voltage Rating
32 VDC
Features
Easy to retrofit in existing systems with vehicle flat-type fuses with identical pin connector pattern
Easy identification of the nominal current value via color marking
Fast, replacement part-free recommissioning after an event with the reconnection options
Downloads
Phoenix 0700020 CAD data International.dxfPhoenix 0700020 CAD data International.pdfPhoenix 0700020 CAD data International.stpPhoenix 0700020 CAD Drawing.stpPhoenix 0700020 Data Sheet English-2.pdfPhoenix 0700020 Data Sheet English.pdfPhoenix 0700020 Flyer English.pdfPhoenix 0700020 Manufacturers declaration International.pdfPhoenix 0700020 Spec Sheet.pdfPhoenix 0700020 Tender Text English.zipPhoenix 0700020 User Manual.pdfPhoenix 0700020 Various English.pdf
