Code: 84259

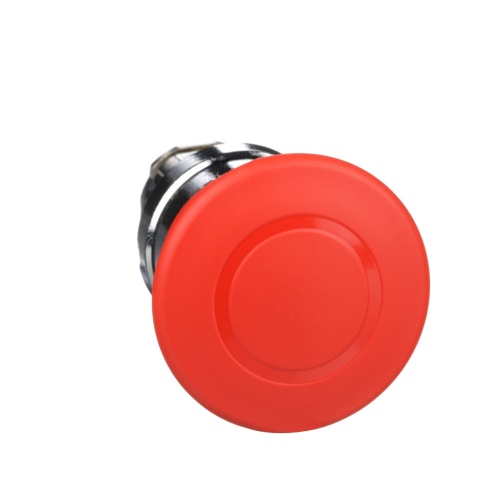

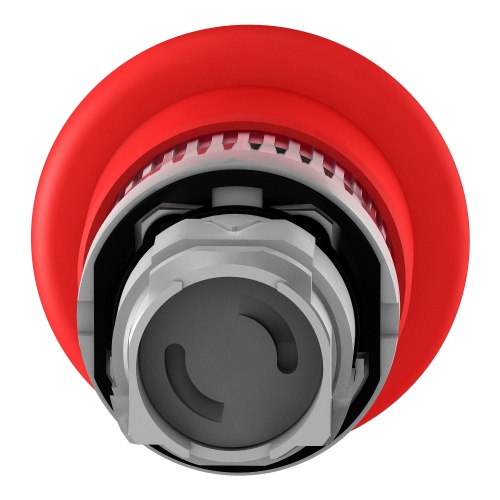

Schneider Electric ZB4BT84 Harmony, 22mm Push Button, emergency stop head, trigger and latching push pull, red, 40 mm mushroom, unmarked
Normally In Stock
Schneider ZB4BT84 trigger action and mechanical latching Head for emergency switching off push-button Push-pull Chromium plated metal Round Red mushroom Ø 40 mm, unmarked 1 Harmony XB4 Standard ZB4 0.87 in (22 mm 0.17 lb(US (0.078 kg 1015.26 psi (7000000 Pa 131 °F (55 °C 0.1 m 30
Condition: New
Normally Stocked$62.39
Sale Price
$51.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Harmony, 22mm Push Button, emergency stop head, trigger and latching push pull, red, 40 mm mushroom, unmarked
Specifications
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Profile
Standard
(Switching-Indication) Key Withdrawl Position
Center
(Switching-Indication) Color
Red
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) IP Rating
IP 69
(Switching-Indication) IP Rating
IP 66
(Switching-Indication) Operation
Latching
(Switching-Indication) IP Rating
IP 67
(Switching-Indication) Operation
Trigger
(Switching-Indication) Operation
Key
(Switching-Indication) IP Rating
IP 69K
Sub Component
Head
Manufacturer
Schneider Electric
Component
Accessories
Features
Wide modular range to suit machines and operator safety.
Designed to fit in a 22mm cut-out or Harmony XAPK control station ensuring compatibility with pre-existing machinery.
Ergonomic design for emergency actuation in several environments
