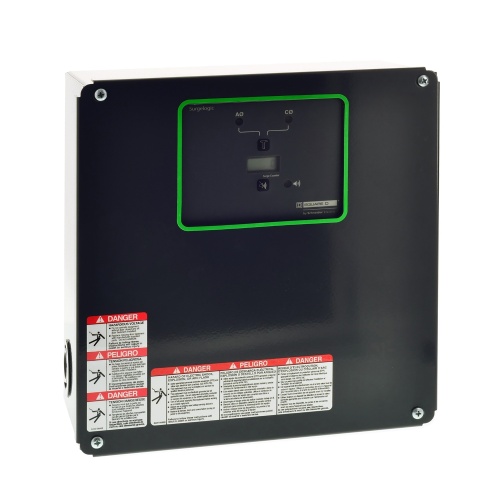

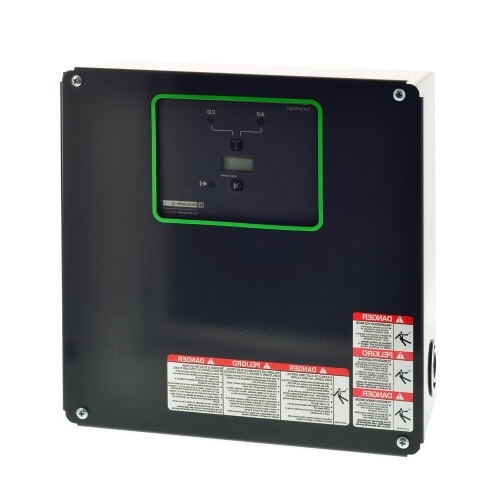

Schneider Electric EMA81 Surge Protective device, Surgelogic, 100kA, 600Y/347V 3 phase
Normally In Stock
Code: 840104
Schneider Electric EMA81 Surge Protective device, Surgelogic, 100kA, 600Y/347V 3 phase
Condition: New
Usually ships Same Day or Next Day$2746.73
Sale Price
$2288.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Surge Protective device, Surgelogic, 100kA, 600Y/347V 3 phase 4 wire, UL Type 1, UL 1283 Components, NEMA 1
Specifications
Manufacturer
Schneider Electric
Component
Surge Protection Device
Surge Protector Line Voltage
600Y/347 Volt
Features
Type 1 UL1449 Listed, CSA 22.2 No. 269.2
Performance tested to demonstrate the design is capable of performing to the published ratings up to 200kA per phase
Individually fused metal oxide varistors (MOVs)
Surge Event Counter
LED Status Indication
Audible Alarm with silence button
Dry contacts for remote indication and optional remote monitor (TVS12RMU)
Optional Flush Mount Kit (EMAFM)
UL/NEMA 1 (indoor) enclosure
NEMA 4X option also available
10 year limited warranty
