Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Schneider Electric XB5AS84W3B5 Illuminated emergency stop, plastic, Ø22, trigger latching turn to release, white/red LED, 24 V AC/DC, 1 NO + 1 NC
Normally In Stock
Code: 83745

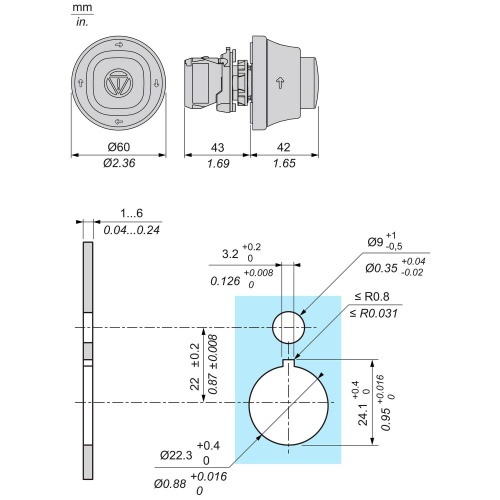

Schneider XB5AS84W3B5 trigger action and mechanical latching 24 V Emergency stop push-button, Emergency switching off push-button 1 NO + 1 NC Protected LED, Protected LED Turn to release Plastic Round Red square 32 mm, IEC White, Red Standard Fixing hole 0.89 in (22.5 mm +/- 0.2
Condition: New
Usually ships Same Day or Next Day$196.43
Sale Price
$163.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Illuminated emergency stop, plastic, Ø22, trigger latching turn to release, white/red LED, 24 V AC/DC, 1 NO + 1 NC
Specifications
(Switching-Indication) Color
White
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Amperage
6 Amp
(Switching-Indication) Profile
Standard
(Switching-Indication) Operation
Slow-Break
(Switching-Indication) Composition
Plastic
(Switching-Indication) Composition
Silver Alloy(Ag/Ni)
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) Color
Red
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Contact Configuration
1 NO + 1 NC
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) IP Rating
IP 69
(Switching-Indication) IP Rating
IP 66
(Switching-Indication) Operation
Turn To Release
(Switching-Indication) Operation
Latching
(Switching-Indication) IP Rating
IP 67
(Switching-Indication) Operation
Trigger
(Switching-Indication) IP Rating
IP 69K
Manufacturer
Schneider Electric
(Switching-Indication) DC Voltage
24 Volt
(Switching-Indication) AC Voltage
24 Volt
Component
Modular Push Button

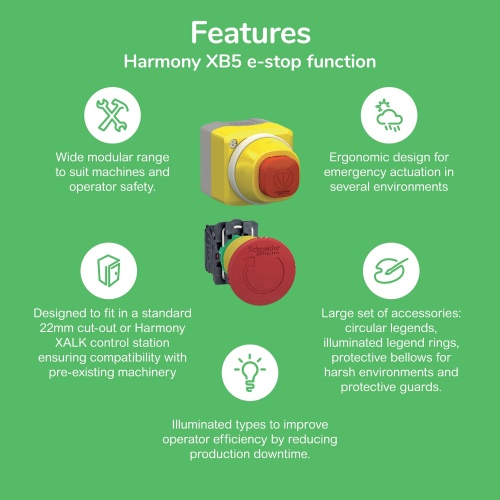

Features
Wide modular range to suit machines and operator safety.
Designed to fit in a 22mm cut-out or Harmony XAPK control station ensuring compatibility with pre-existing machinery.
Illuminated types to improve operator efficiency by reducing production downtime.
