Code: 837206

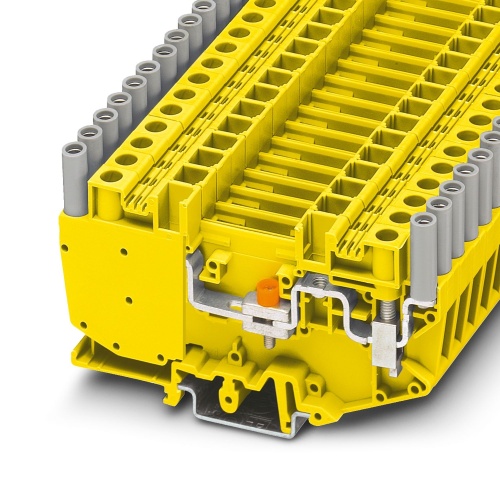

Phoenix Contact 3070517 Test disconnect terminal block URTK/SP YE
Normally In Stock
Phoenix 3070517 Test disconnect terminal block URTK/SP YE
Condition: New
Usually ships within 7-14 days. Call for ship time.$16.02
Sale Price
$13.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3070517 The test disconnect terminal block is subjected to a series of tests with varying parameters including voltage and current ratings, connection methods, and cross-sectional sizes. Specifically, it has a nominal voltage of 500 V, a maximum current rating of 41 A, and can be connected using a screw method in one level configuration. Its cross-section size ranges between 0.5 mm2 to 10 mm2 and is available in different mounting types including NS35/7.5, NS35/15, and NS32. The terminal block also comes with a yellow color rating.
Specifications
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Test Disconnect Terminal Block
Features

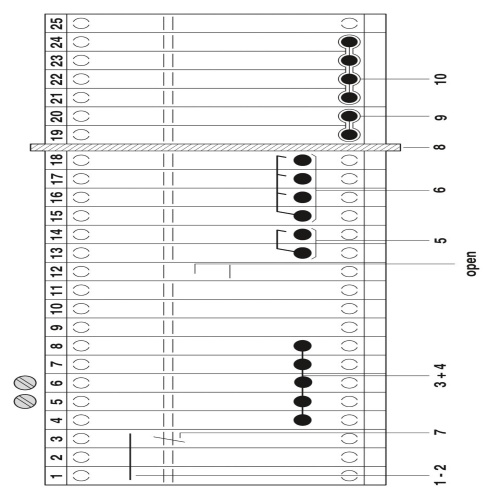

High-level functionality with up to six universal function shafts for potential distribution or test purposes

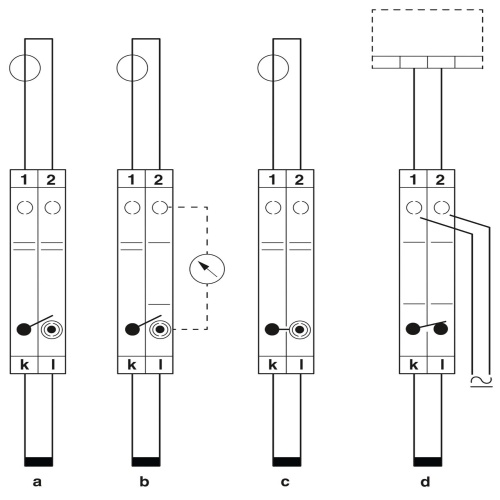

Modular design for current transformer and measuring transducer switching with plug-in transformer terminal blocks

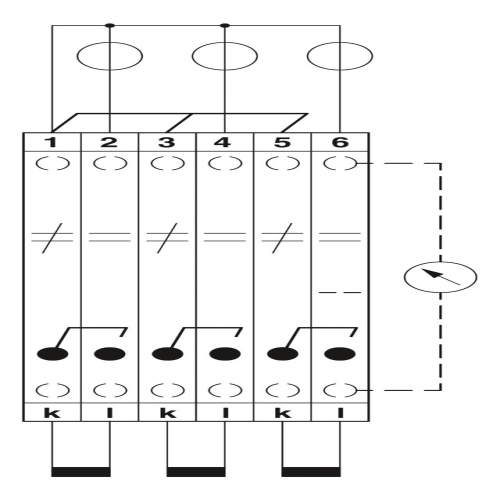

Reliable protection of connected current transformers and measuring transducers with plug versions with integrated leading short-circuit contact
Simple and functional design with feed-through terminal blocks and PE terminal blocks of the same shape
Reliable contacting and latching of the section disconnector in the respective switching state
Clear identification of the switching states
