Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

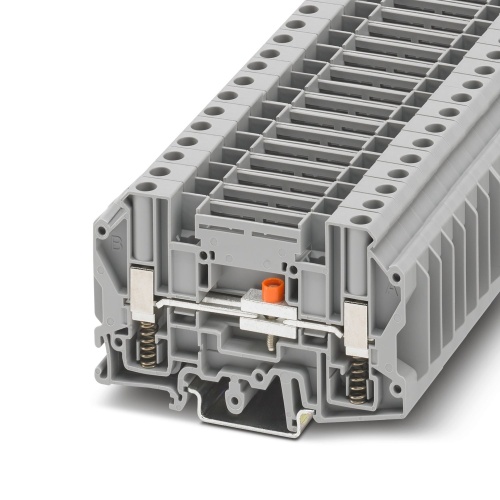

Phoenix Contact 1075388 Test disconnect terminal block USST 6-T/SB HV
Normally In Stock
Code: 837205
Phoenix 1075388 Test disconnect terminal block USST 6-T/SB HV
Condition: New
Usually ships within 7-14 days. Call for ship time.$15.73
Sale Price
$13.11
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1075388 The test disconnect terminal block is a standard component with specific parameters, including a nominal voltage of 1000 V and a nominal current capacity of 41 A. It features a screw connection with spring support and has multiple mounting types such as NS35/7.5, NS35/15, and NS32, all characterized by a gray color and a cross-sectional area ranging from 0.2 mm² to 10 mm², with a maximum rated cross-sectional area of 6 mm².
Specifications
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Test Disconnect Terminal Block
Features
High-level functionality with up to six universal function shafts for potential distribution or test purposes
Modular design for current transformer and measuring transducer switching with plug-in transformer terminal blocks
Reliable protection of connected current transformers and measuring transducers with plug versions with integrated leading short-circuit contact
Simple and functional design with feed-through terminal blocks and PE terminal blocks of the same shape
Reliable contacting and latching of the section disconnector in the respective switching state
Clear identification of the switching states
Code: 837205
Phoenix Contact 1075388 Test disconnect terminal block USST 6-T/SB HV
