Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

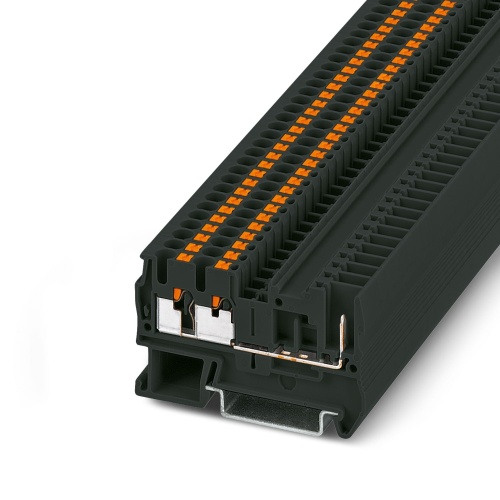

Phoenix Contact 3209647 Feed-through terminal block PT 2,5-TWIN/1P BK
Normally In Stock
Code: 837160
Phoenix 3209647 Feed-through terminal block PT 2,5-TWIN/1P BK
Condition: New
Usually ships within 7-14 days. Call for ship time.$2.10
Sale Price
$1.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3209647 A feed-through terminal block features a nominal voltage of 500V and a nominal current rating of 24A, accommodating up to three connections in one position using push-in/plug connection. The rated cross-sectional area is 2.5mm², with a tolerance range from 0.14mm² to 4mm², suitable for mounting types NS35/7.5 and NS35/15, with a black color finish.
Specifications
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Black
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Plug-In Terminal Block
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
