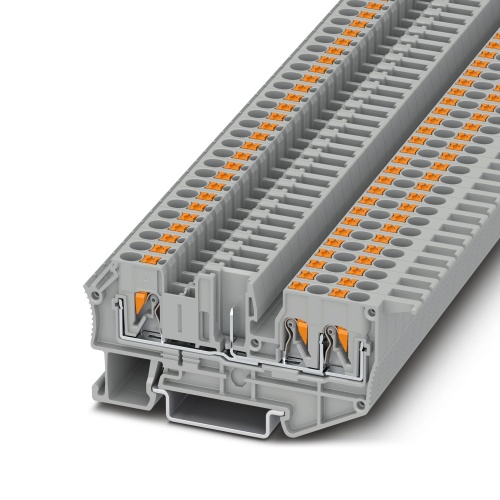

Phoenix Contact 1107578 Feed-through terminal block PT 4/S-QUATTRO/1P
Normally In Stock
Code: 837159
Phoenix 1107578 Feed-through terminal block PT 4/S-QUATTRO/1P
Condition: New
Usually ships within 7-14 days. Call for ship time.$2.44
Sale Price
$2.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1107578 The terminal block features a feed-through design with an 800V nominal voltage and a maximum of 24A nominal current. The thermal continuous current limit is also 24A, indicating its capacity to handle high currents without overheating. Connections can be made using push-in or plug connections, and the available cross-sectional areas range from 0.14mm2 to 4mm2. These terminals are mounted on an NS35/7,5 or NS35/15 mounting type and have a gray color.
Specifications
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Component Color
Gray
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Plug-In Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors

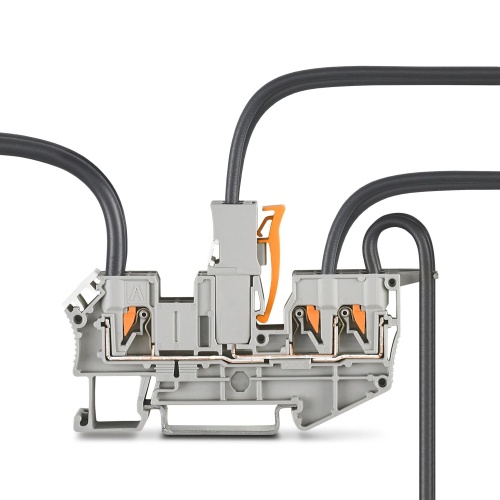

The plug-in potential pick-off in the middle of the terminal block can be used for testing and system diagnostics.
Use of 4 mm² Push-in COMBI connectors (32 A) or CP 4 crimp contact connector housings (10 A).
Automatically produced cable harnesses can be used.
Coding accessories from the COMBI series prevent incorrect connection or mismatching when using several connectors.
High vibration resistance with optional latching and strain relief accessories.
Double bridge shaft for additional potential distribution or test accessories can be used.
