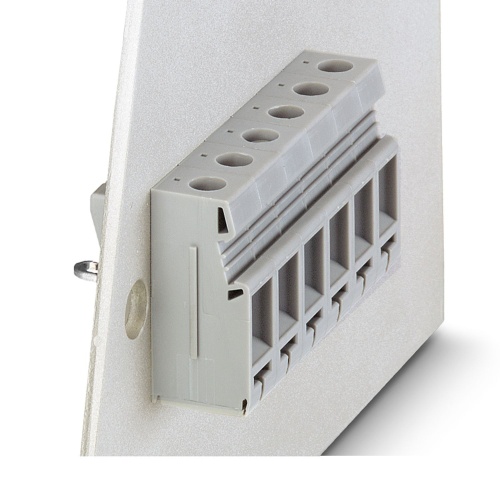

Phoenix Contact 0711069 Panel feed-through terminal block VDFK 6/K GNYE
Normally In Stock
Code: 837144
Phoenix 0711069 Panel feed-through terminal block VDFK 6/K GNYE
Condition: New
Usually ships within 7-14 days. Call for ship time.$12.36
Sale Price
$10.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0711069 The terminal block features a panel feed-through design with two connection methods: screw connections utilizing tension sleeves and solder joints. It has one position for accommodating different load currents, ranging from 0.2 mm² to 10 mm². The orientation of the conductor relative to the plug-in direction is perpendicular at 0 degrees, allowing for easy installation. The block's dimensions include a width of 10 mm and a distinctive color scheme characterized by green-yellow hues.
Specifications
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Panel Feed-Through Terminal Block
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
