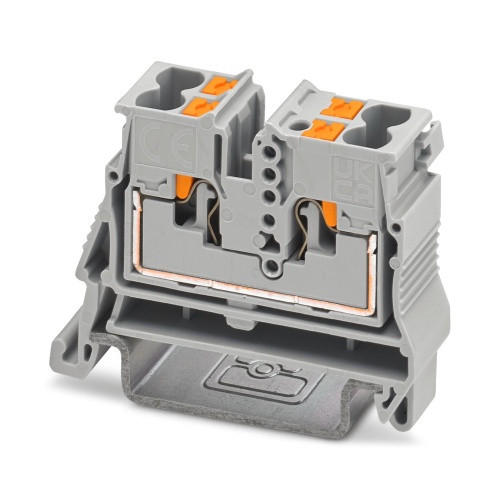

Phoenix Contact 1429438 Mini feed-through terminal block MPTD 2,5-NS 35
Normally In Stock
Code: 837106
Phoenix 1429438 Mini feed-through terminal block MPTD 2,5-NS 35
Condition: New
Usually ships within 7-14 days. Call for ship time.$2.54
Sale Price
$2.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1429438 A terminal block with a mini feed-through design features a nominal voltage of 800 V and a maximum current capacity of 24 A, accommodating four connections at each of one position, secured via push-in connection, with rated cross-sections ranging from 0.14 mm2 to 4 mm2, mounted using NS35/7.5 or NS35/15 standards in a gray color.
Specifications
Terminal Block Width
10.3 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Features
Significant space savings with the compact design
Increased flexibility with single function shafts
Clear arrangement with marking grooves on each individual terminal point
Time-saving conductor connection with tool-free and maintenance-free Push-in connection technology
Testing options for all common test probes
