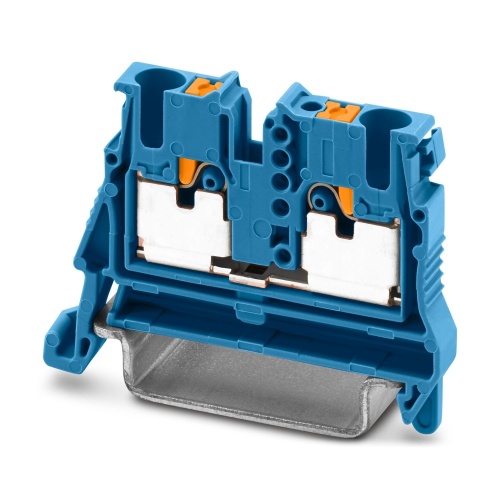

Phoenix Contact 1073554 Mini feed-through terminal block MPT 2,5-NS 35 BU
Normally In Stock
Code: 837102
Phoenix 1073554 Mini feed-through terminal block MPT 2,5-NS 35 BU
Condition: New
Usually ships within 7-14 days. Call for ship time.$1.39
Sale Price
$1.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1073554 The mini feed-through terminal block features a nominal voltage of 800 V and a maximum current rating of 24 A. It has two connections and one position, with push-in connection as the primary method for making connections. The rated cross section is 2.5 mm², but can accommodate smaller sections from 0.14 to 4 mm². This terminal block is designed for mounting on NS35/7.5 or NS35/15 types, and has a blue color scheme.
Specifications
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Features
Significant space savings with the compact design
Increased flexibility with single function shafts
Clear arrangement with marking grooves on each individual terminal point
Time-saving conductor connection with tool-free and maintenance-free Push-in connection technology
Testing options for all common test probes
