Code: 837073

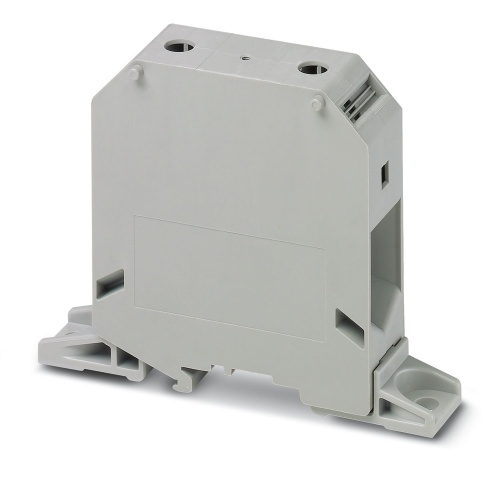

Phoenix Contact 3247022 High-current terminal block UKH 95-F
Normally In Stock
Phoenix 3247022 High-current terminal block UKH 95-F
Condition: New
Usually ships within 7-14 days. Call for ship time.$38.84
Sale Price
$32.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3247022 A high-current terminal block features a nominal voltage of 1000 V and a maximum current capacity of 232 A, accommodating up to two connections via a screw connection method, with rated cross sections ranging from 25 mm² to 95 mm², supported by a direct screw mounting system and available in gray color.
Specifications
Terminal Block Width
25 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Amperage
232 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Model Type
UKH
Features

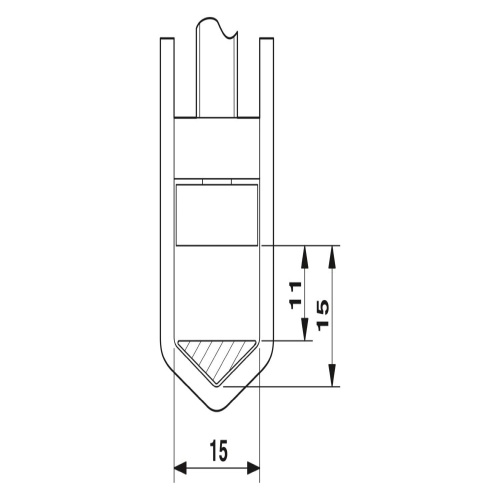

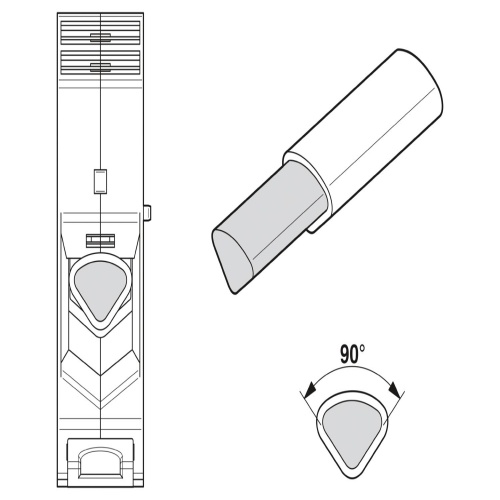

Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
Screw locking by means of spring-loaded elements in the clamping part
Low contact resistance of the contact surface due to ribbing
