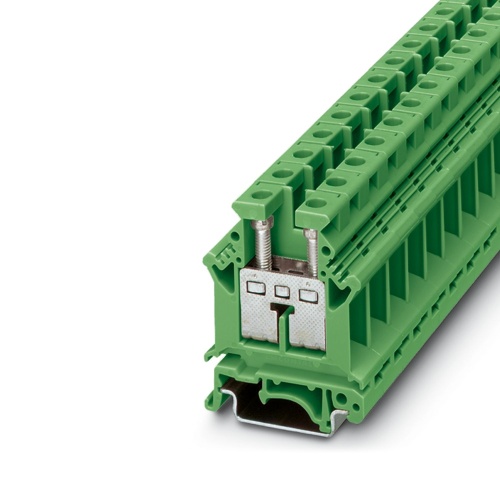

Phoenix Contact 3000570 Feed-through terminal block UK 16 N GN
Normally In Stock
Code: 837054
Phoenix 3000570 Feed-through terminal block UK 16 N GN
Condition: New
Usually ships within 7-14 days. Call for ship time.$9.30
Sale Price
$7.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3000570 The terminal block features a feed-through design with a nominal voltage of 800V and a maximum current rating of 76A. It has two connections made via screw connection and is available in various cross-section sizes ranging from 2.5mm² to 25mm². The mounting type options include NS35/7.5, NS35/15, and NS32, while the color is green.
Specifications
Terminal Block Width
12.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Green
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
All universal terminal blocks in the UK... series can also be used in the Ex e area according to IEC/EN 60079 as standard
The corresponding EC-type examination numbers for Ex approval can be found in the technical connection data
