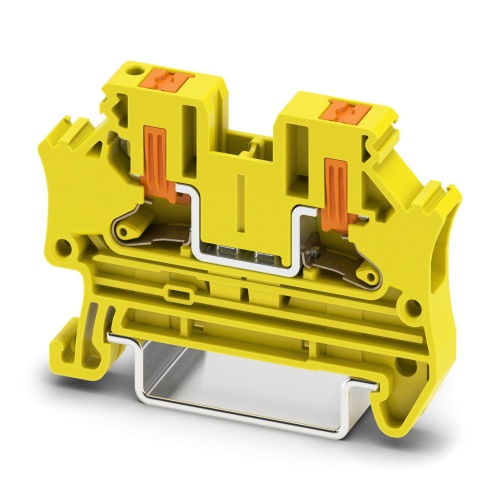

Phoenix Contact 1776224 Feed-through terminal block PTV 4 YE
Normally In Stock
Code: 837050
Phoenix 1776224 Feed-through terminal block PTV 4 YE
Condition: New
Usually ships within 7-14 days. Call for ship time.$1.91
Sale Price
$1.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1776224 The feed-through terminal block features a nominal voltage of 1000V and a nominal current capacity of 32A, allowing for two connections. The connection method is via push-in, with rated cross-sectional areas ranging from 4mm2 to 6mm2. It can be mounted using the NS35/7.5 or NS35/15 types, and has a yellow color designation.
Specifications
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Yellow
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
Clear wiring, thanks to lateral conductor entry
The compact design enables wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
