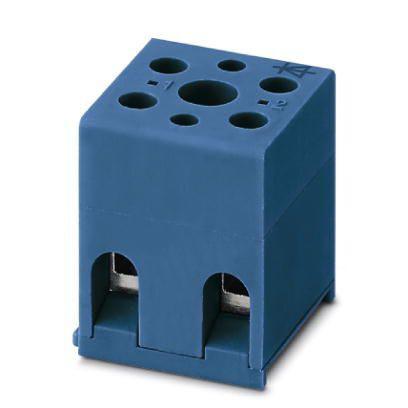

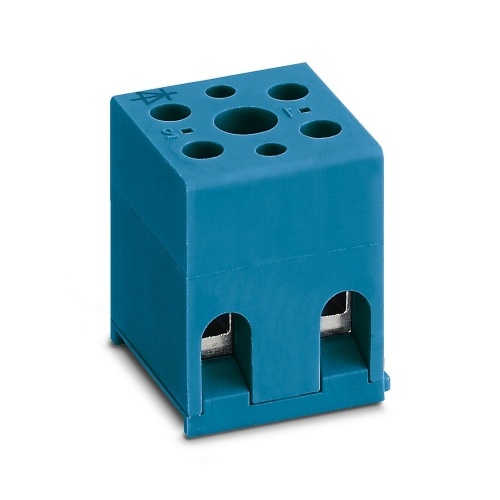

Phoenix Contact 3022247 Device terminal block G 5/ 2 DIO SO BU
Normally In Stock
Code: 837045
Phoenix 3022247 Device terminal block G 5/ 2 DIO SO BU
Condition: New
Usually ships within 7-14 days. Call for ship time.$5.23
Sale Price
$4.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3022247 The device terminal block features a built-in diode with a standard voltage rating of 500V and a maximum current capacity of 32A, accommodating up to four connections via a secure screw connection method, available in varying cross-sectional areas ranging from 0.2mm² to 4mm² and suitable for direct screw mounting with a distinctive blue color.
Specifications
Terminal Block Width
20 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
