Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 837016
Phoenix Contact 1028591 Knife-disconnect terminal block PT 6-MT P/P HV
Normally In Stock
Phoenix 1028591 Knife-disconnect terminal block PT 6-MT P/P HV
Condition: New
Usually ships within 7-14 days. Call for ship time.$14.35
Sale Price
$11.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1028591 The knife-disconnect terminal block features a 1000V nominal voltage and a maximum current rating of 32A. It uses push-in connections and has a cross-sectional area ranging from 0.5 to 10mm². Suitable mounting options include NS35/7.5, NS35/15, and NS32. The terminal block is also marked with a gray color, indicating its overall specifications.
Specifications
Terminal Block Width
10.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Features

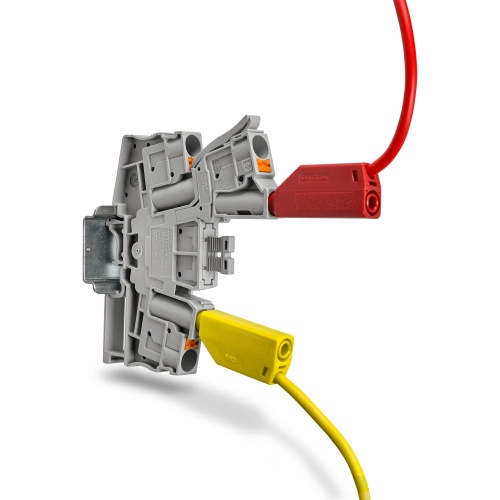

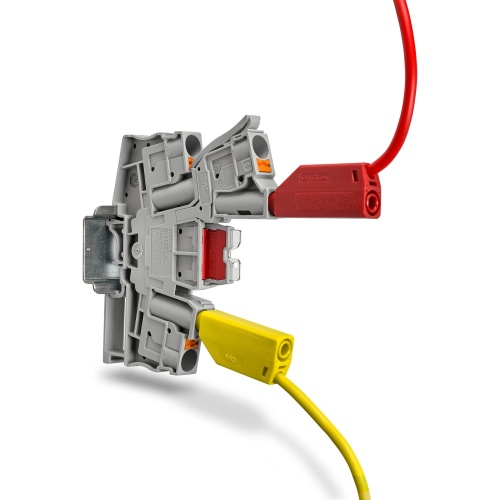

In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
