Code: 837015
Phoenix Contact 1079063 Knife-disconnect terminal block PTV 2,5-MT
Normally In Stock
Phoenix 1079063 Knife-disconnect terminal block PTV 2,5-MT
Condition: New
Usually ships within 7-14 days. Call for ship time.$5.70
Sale Price
$4.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

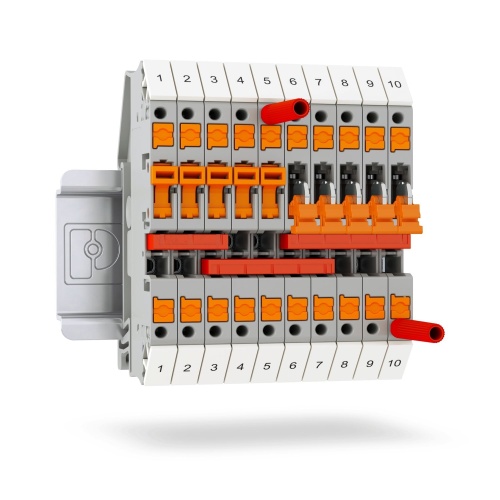

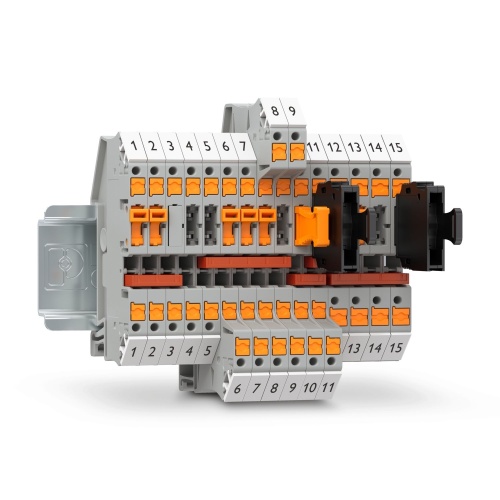

Phoenix Contact 1079063 The knife-disconnect terminal block has a nominal voltage of 400 V and a maximum current rating of 20 A, with connections made using a push-in method. The rated cross-sectional area is 2.5 mm2, although it can accommodate cross-sections ranging from 0.14 mm2 to 4 mm2. This terminal block is mounted on the NS35/7.5 and NS35/15 connectors, and its casing color is gray.
Specifications
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Features
The secure end position of the lever-type disconnect knife ensures that the switching states of the knife disconnect terminal blocks are permanently secured and are always clearly recognizable

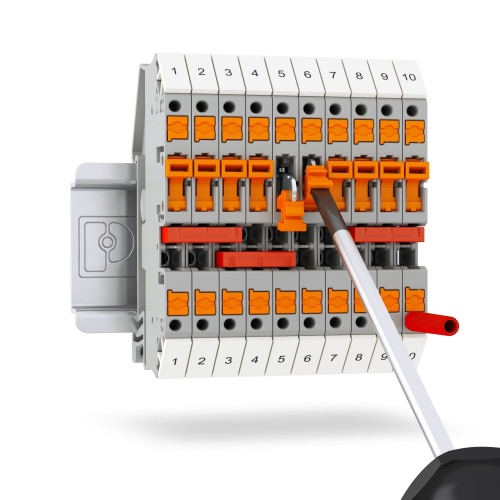

The circuits can be opened easily with a standard screwdriver
Clear wiring, thanks to lateral conductor entry
The compact design enables wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
