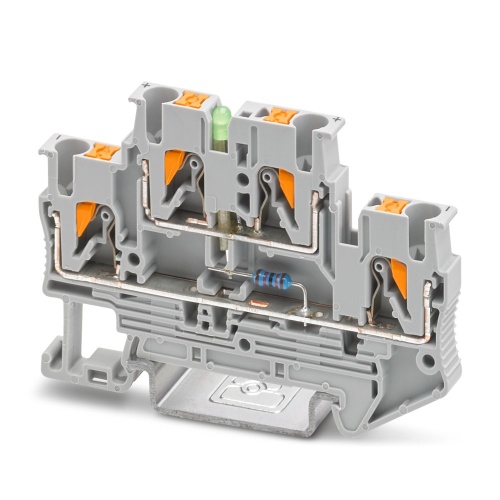

Phoenix Contact 1449823 Double-level terminal block PTTB 2,5-LA 24 GN
Normally In Stock
Code: 836992
Phoenix 1449823 Double-level terminal block PTTB 2,5-LA 24 GN
Condition: New
Usually ships within 7-14 days. Call for ship time.$14.60
Sale Price
$12.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

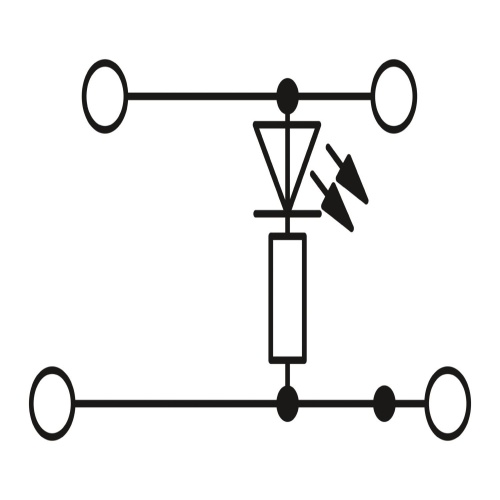

Phoenix Contact 1449823 The double-level terminal block features an LED display that determines the operating voltage, with a range of 12V DC to 30V DC and corresponding current ratings from 0.7mA to 2.4mA. The nominal values are 500V and 20A, with push-in connection and rated cross-sections ranging from 2.5mm² to 4mm², while it is mounted using NS35/7.5 or NS35/15, and has a gray color.
Specifications
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Component Terminal Block
Features
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
