Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

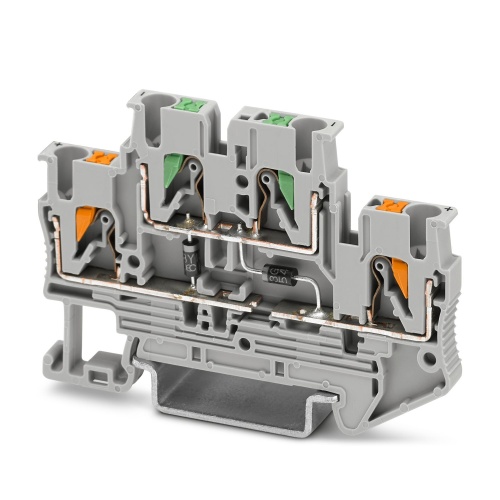

Phoenix Contact 1032738 Component terminal block PTTB 2,5-2DIO/UL-O/UR-O/U-OG/O-GN
Normally In Stock
Code: 836991
Phoenix 1032738 Component terminal block PTTB 2,5-2DIO/UL-O/UR-O/U-OG/O-GN
Condition: New
Usually ships within 7-14 days. Call for ship time.$12.76
Sale Price
$10.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

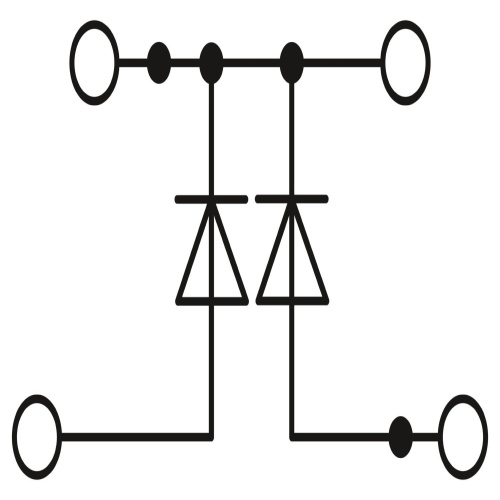

Phoenix Contact 1032738 A component terminal block features an integrated 1N4007 diode with a nominal current rating of 0.5 A and offers four push-in connections. The rated cross-sectional areas vary between 2.5 mm2 for the first and second levels, and 0.14 mm2-4 mm2, with mounting types including NS35/7.5 and NS35/15, and a characteristic color of gray.
Specifications
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Amperage
0.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
Downloads
Code: 836991
Phoenix Contact 1032738 Component terminal block PTTB 2,5-2DIO/UL-O/UR-O/U-OG/O-GN
$12.76
Sale Price
$10.63
