Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

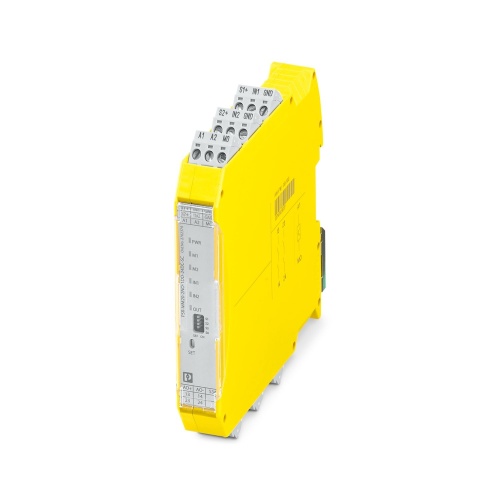

Phoenix Contact 2702374 Safety relay module PSR-MM20-2NO-1DO-24DC-SC
Normally In Stock
Code: 836966
Phoenix 2702374 Safety relay module PSR-MM20-2NO-1DO-24DC-SC
Condition: New
Usually ships within 7-14 days. Call for ship time.*NON-CANCELLABLE, NON-RETURNABLE*
$561.18
Sale Price
$467.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

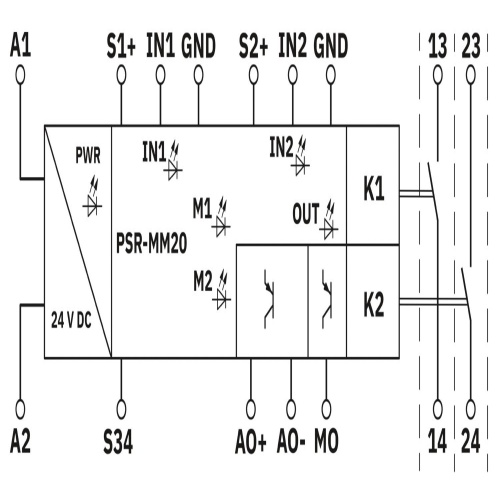

Phoenix Contact 2702374 A safety relay module is available with SIL 3, Cat. 4, PL e certification for monitoring speed or zero-speed and can be connected to two proximity switches, featuring a pluggable screw terminal block, with a compact width of 17.5 mm.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Manufacturer
Phoenix Contact
Component
Safety Module
Features
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508

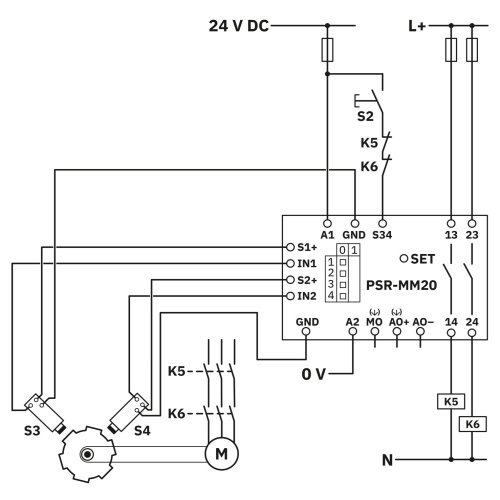

Compatible with 3-wire proximity switches for motion monitoring
Locally configurable
Individually adjustable switching threshold in the range 0.5 Hz … 315 Hz
Low housing width of just 17.5 mm
