Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

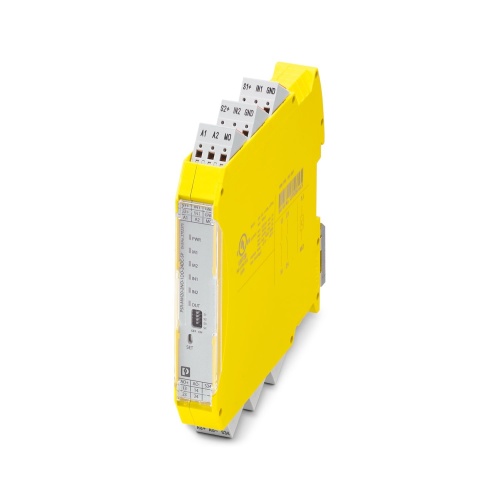

Phoenix Contact 2702375 Safety relay module PSR-MM20-2NO-1DO-24DC-SP
Normally In Stock
Code: 836965
Phoenix 2702375 Safety relay module PSR-MM20-2NO-1DO-24DC-SP
Condition: New
Usually ships within 7-14 days. Call for ship time.*NON-CANCELLABLE, NON-RETURNABLE*
$561.18
Sale Price
$467.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2702375 A safety relay module for speed and zero-speed monitoring is available, rated up to SIL 3, Cat 4, and PL e, designed to connect two proximity switches and features a pluggable push-in terminal block with a width of 17.5 mm.
Specifications
Safety Degree of Protection
IP20
Safety Connection Method
Push-In Connection
Manufacturer
Phoenix Contact
Component
Safety Module
Features
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
Compatible with a range of motion sensors
Locally configurable
Individually adjustable switching threshold in the range 0.5 Hz … 315 Hz
Low housing width of just 17.5 mm
