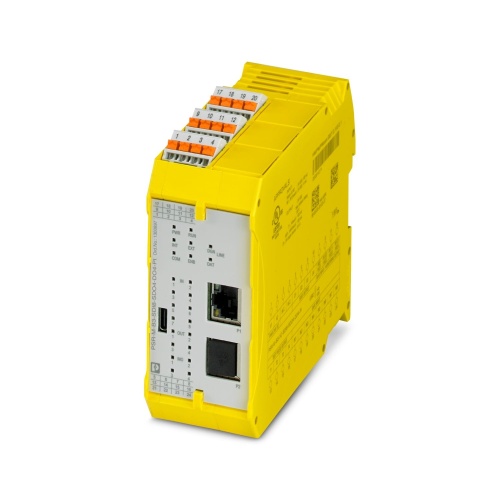

Phoenix Contact 1300897 Safety module PSR-M-B3-SDI8-SDO4-DO4-PI
Normally In Stock
Code: 836963
Phoenix 1300897 Safety module PSR-M-B3-SDI8-SDO4-DO4-PI
Condition: New
Usually ships within 7-14 days. Call for ship time.*NON-CANCELLABLE, NON-RETURNABLE*
$748.24
Sale Price
$623.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1300897 A configurable safety module features eight single-drop inputs and four signal outputs, as well as four reset inputs or signal outputs and four clock outputs, with the option to expand via a Twinax Bus interface up to SIL 3 category, Cat. 4/PL e standard, utilizing a plug-in push-in terminal block without the included TBUS connector and offering integrated gateway functionality.
Specifications
Safety Degree of Protection
IP20
Manufacturer
Phoenix Contact
Component
Safety Module
Safety Connection Method
USB 2.0 Type C
Features
Cost-effective safety solution with a high level of adaptability to individual requirements
Fast startup, thanks to easy hardware and software configuration
Machine downtimes minimized with comprehensive, easy-to-understand diagnostics
Flexible extension with safe inputs and outputs
Possibility of connecting fieldbus gateways for bidirectional communication between the base module and the higher-level controller
Tool-free and time-saving installation thanks to Push-in technology
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
Suitable for elevator applications in accordance with EN 81-20
Integrated gateway functionality for PROFINET, EtherCAT®, EtherNet/IP™, Modbus/TCP
