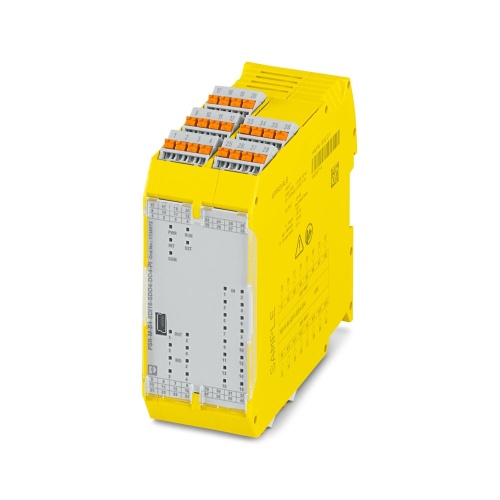

Phoenix Contact 1738576 Safety module PSR-M-B4-SDI16-SDO4-DO4-SC
Normally In Stock
Code: 836961
Phoenix 1738576 Safety module PSR-M-B4-SDI16-SDO4-DO4-SC
Condition: New
Usually ships within 7-14 days. Call for ship time.*NON-CANCELLABLE, NON-RETURNABLE*
$841.78
Sale Price
$701.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1738576 A configurable safety module with a basic configuration includes 16 safe inputs, 4 safe outputs, 4 reset inputs, 4 signal outputs, 4 clock outputs and is compatible with SIL levels up to 3, Category 4/PL e, utilizing a plug-in screw terminal block.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Manufacturer
Phoenix Contact
Component
Safety Module
Features
Cost-effective safety solution with a high level of adaptability to individual requirements
Fast startup, thanks to easy hardware and software configuration
Machine downtimes minimized with comprehensive, easy-to-understand diagnostics
Low housing width of just 45.2 mm
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
Suitable for elevator applications in accordance with EN 81-20
