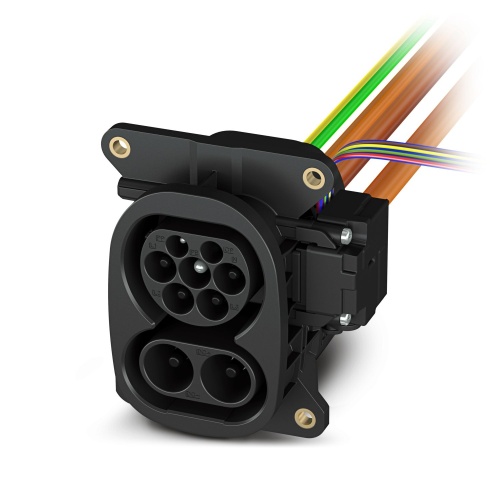

Phoenix Contact 1720109 Vehicle charging inlet CHARX T2HBI24-DC375-2,0C2
Normally In Stock
Code: 836158
Phoenix 1720109 Vehicle charging inlet CHARX T2HBI24-DC375-2,0C2
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1160.64
Sale Price
$967.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

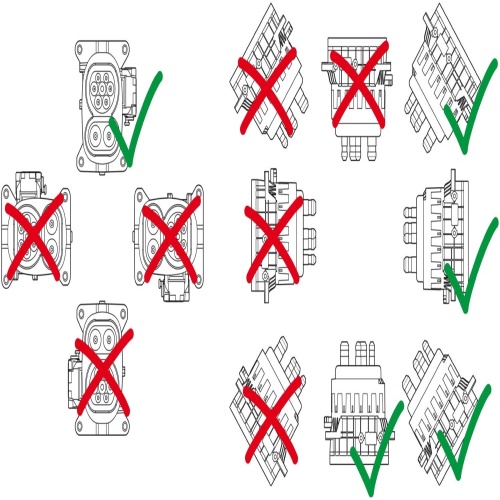

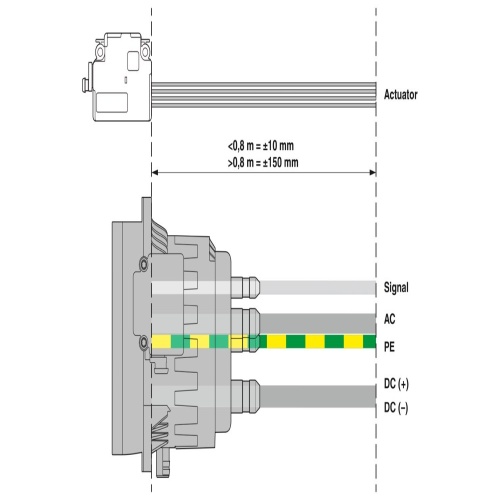

Phoenix Contact 1720109 The CHARX connector has universal compatibility and can be used in various applications including Vehicle charging inlet, featuring a boost mode that allows for currents of over 500A, while in permanent mode it operates at 325A. It connects to a single wire with a length of 2 meters, utilizing a locking actuator powered by 24V DC, with four positions available for front and rear mounting options. The housing is black and features the IEC standards of 62196-1 and 62196-2, accompanied by a standard protective cap for the DC contacts.
Specifications
Manufacturer
Phoenix Contact
Component
Charging Inlet
Charging Cable Length
1 M
Features
Complete product range

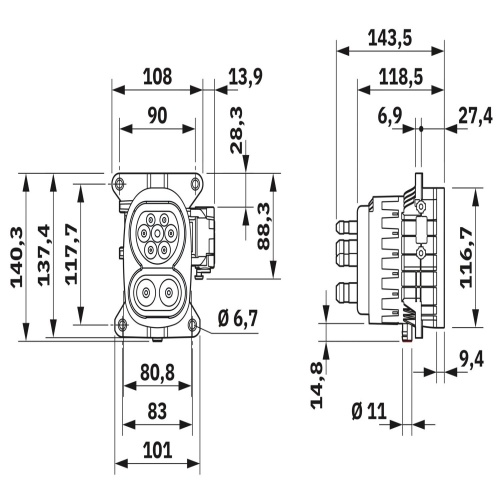

Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001

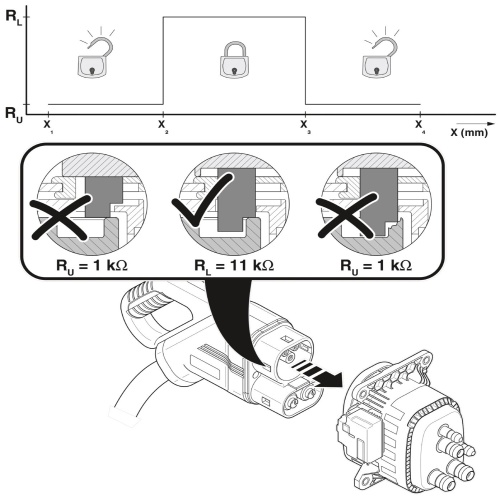

Integrated interlock during charging
Manual emergency release of the locking actuator
Protected and sealed against dirt and water with a high degree of protection
