Code: 835815

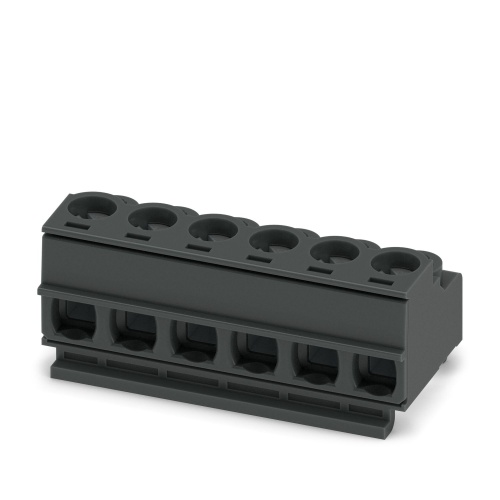

Phoenix Contact 1705163 PCB connector PT 1,5/ 6-PH-5,0 CLIP BK
Normally In Stock
Phoenix 1705163 PCB connector PT 1,5/ 6-PH-5,0 CLIP BK
Condition: New
Usually ships within 7-14 days. Call for ship time$2.17
Sale Price
$1.81
MUST BUY IN PACKS OF 100
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1705163 The PCB connector has a nominal cross-sectional area of 1.5mm2 and is colored black, with a rated voltage of up to 400V and a maximum current capacity of 10A. It features a contact surface made of tin, with a socket connection type and six individual potentials, arranged in a single row with six positions and connections. The connector has a pitch of 5mm and uses screw connections with tension sleeves, utilizing H1L Slotted Phillips recessed screws.
Specifications
Manufacturer
Phoenix Contact
Component
PCB Connector
Number of Connections
6
Number of Positions
6
Connector Voltage
400 Volt
Connector Pitch
5 mm
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
High terminal block capacity thanks to rectangular terminal block space

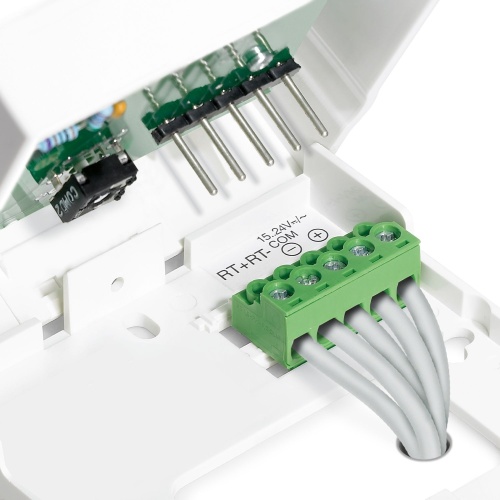

Can be snapped into device housing thanks to CLIP geometry
Code: 835815
Phoenix Contact 1705163 PCB connector PT 1,5/ 6-PH-5,0 CLIP BK
$2.17
Sale Price
$1.81
MUST BUY IN PACKS OF 100
