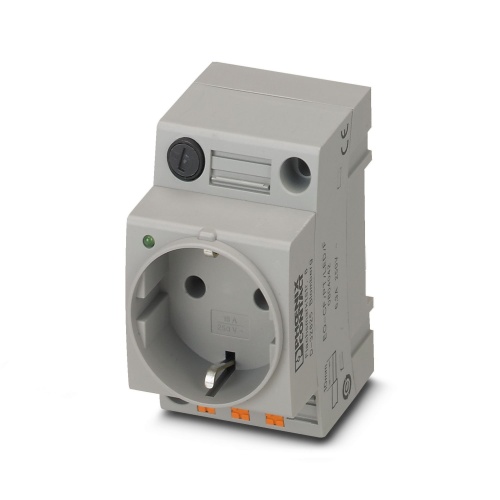

Phoenix Contact 0804042 Socket EO-CF/PT/LED/F
Normally In Stock
Code: 832765
Phoenix 0804042 Socket EO-CF/PT/LED/F
Condition: New
Usually ships Same Day or Next Day$14.69
Sale Price
$12.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

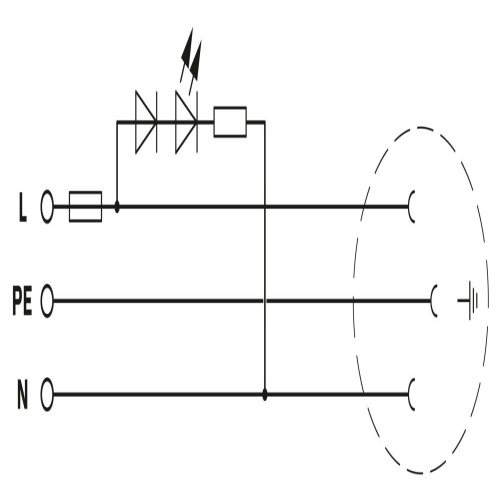

Phoenix Contact 0804042 The socket features an LED display and includes a fuse rated at 5 x 20mm with a current capacity of 6.3A. It has a pin connector pattern type CF and employs a push-in spring connection method. The device is colored gray and operates within a nominal voltage of 250V AC at 50Hz, with an allowed nominal current of 6A. Suitable for mounting on either a DIN rail in the service interface or direct mounting, it adheres to standards/specifications such as VDE 0620-1 and IEC 60884-1, and is marked according to German regulations.
Specifications
Manufacturer
Phoenix Contact
Component
Accessories
Sub Component
Socket
Features
Comprehensive product range for worldwide use
Space-saving due to the modular design and versions with double slot
Flexible installation with DIN rail, mounting frame, and direct mounting
Robust and temperature-resistant due to versions with IP65 degree of protection
Integrated touch protection
