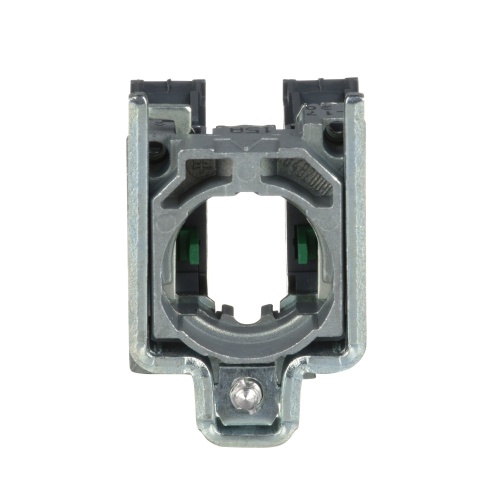

Schneider Electric ZB4BZ103 Harmony, 22mm Push Button, XB4B operators, contact block, with mounting collar, 2 NO, screw clamp terminal
Normally In Stock
Code: 83259
Schneider ZB4BZ103 Complete body/contact assembly 2 NO Single Standard contacts 1 Harmony XB4 Standard Body, Fixing collar 10 A EN/IEC 60947-5-1 10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 6 (MUST BUY IN PACKS OF 5)
Condition: New
Normally Stocked$44.35
Sale Price
$36.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Harmony, 22mm Push Button, XB4B operators, contact block, with mounting collar, 2 NO, screw clamp terminal
Specifications
(Switching-Indication) Size
22 mm
(Switching-Indication) Amperage
6 Amp
(Switching-Indication) Profile
Standard
(Switching-Indication) Contact Configuration
2 NO
(Switching-Indication) Operation
Slow-Break
(Switching-Indication) Composition
Silver Alloy(Ag/Ni)
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Composition
Zamak
(Switching-Indication) IP Rating
IP 20
Sub Component
Push Button Contact Block With Mounting Collar
Manufacturer
Schneider Electric
Component
Accessories
Features
Quick and easy assembly and disassembly
Robustness to withstand harsh environments
Various types of connection: screw clamp, connector, Faston connector or spring terminal
