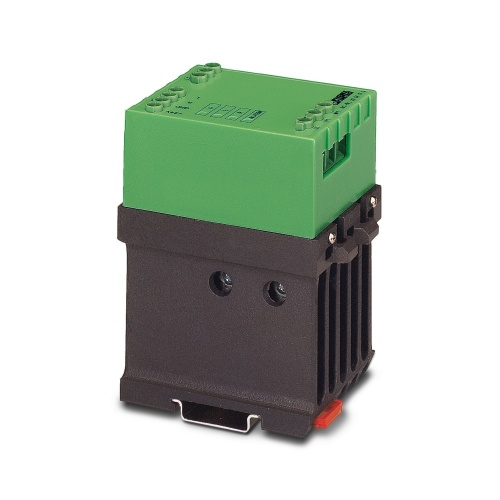

Phoenix Contact 2964186 Reversing load relay ELR W3/ 9-500
Normally In Stock
Code: 83082
Phoenix 2964186 Motor protection,Reverse motor 150 mAmp Screw connection Reversing load relay
Condition: New
Usually ships within 7-14 days. Call for ship time.$1192.50
Sale Price
$993.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2964186 The electronic reversing load relay is designed to power equipment directly within a 3-phase network and features an accompanying light indicator and built-in protection circuitry, providing an output of 110-550 V AC at a maximum current capacity of 3 x 9 A.
Specifications
Motor Component
Solid-State Contactor
Motor Function
Motor Protection
Motor Connection Method
Screw Connection
Motor Output Voltage
500 VAC
Motor Input Voltage
24 VDC
Motor Function
Reverse Motor
Motor Approval
EN 50178
Manufacturer
Phoenix Contact
Motor Load Current
150 Mamp
Features
LEDs for forward and reverse running, operating voltage, and impermissible control
Noise and wear-free switching up to 500 V AC/9 A
Protective circuit in input and output
High switching frequency
Code: 83082
Phoenix Contact 2964186 Reversing load relay ELR W3/ 9-500
