Phoenix Contact 2297057 Hybrid motor starter ELR W3- 24DC/500AC- 9I
Normally In Stock
Code: 83070
Phoenix 2297057 Motor protection,Reverse motor,Emergency Stop/Shutdown 1.5 Amp - 9 Amp (see to derating) Screw connection Hybrid motor starter
Condition: New
Usually ships Same Day or Next Day$313.22
Sale Price
$261.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

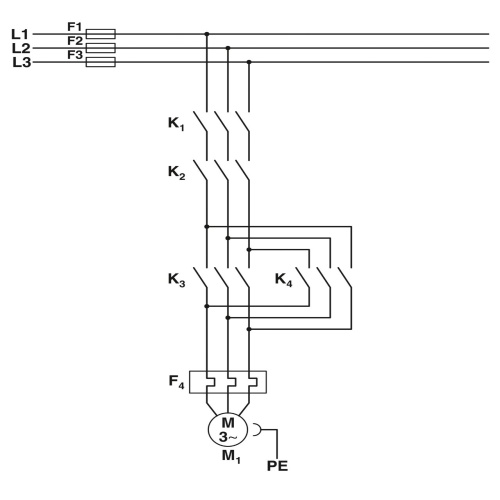

Phoenix Contact 2297057 The hybrid motor starter is designed for use with reversing AC motors that operate within a range of 3~AC and have an output current of up to 9A, utilizing a DC control voltage of 24V and featuring adjustable overload shutdown protection as well as an emergency stop function meeting SIL3/PLe safety standards, all while employing a screw connection type.
Specifications
Motor Component
Hybrid Motor Starter
Motor Function
Motor Protection
Motor Function
Emergency Stop-Shutdown
Motor Connection Method
Screw Connection
Motor Approval
IEC 61508
Motor Approval
ISO 13849
Motor Output Voltage
500 VAC
Motor Input Voltage
24 VDC
Motor Function
Reverse Motor
Motor Approval
DIN EN 50178
Motor Approval
EN 60947
Manufacturer
Phoenix Contact
Motor Load Current

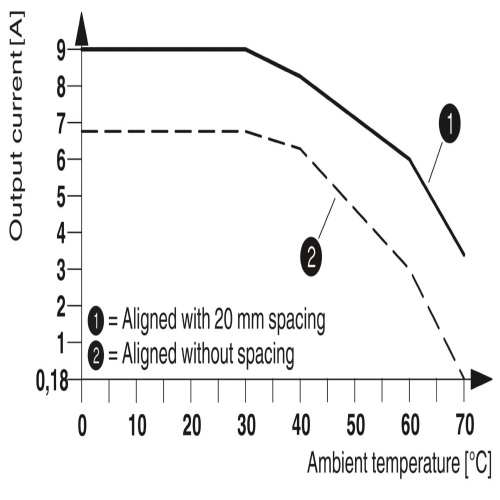

1.5 Amp - 9 Amp (See To Derating)
Features
Long service life
Safety level in accordance with IEC 61508-1: SIL 3, ISO 13849: PL e
Reduction in wiring
22.5 mm wide
Space saving
3-phase loop bridges
Adjustable current for bimetal function
Low-wear switching
