Phoenix Contact 2297031 Hybrid motor starter ELR W3- 24DC/500AC- 2I
Normally In Stock
Code: 83069
Phoenix 2297031 Motor protection,Reverse motor,Emergency Stop/Shutdown 180 mAmp - 2.4 Amp (see to derating) Screw connection Hybrid motor starter
Condition: New
Usually ships Same Day or Next Day$285.56
Sale Price
$237.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2297031 A hybrid motor starter designed specifically for reversing 3-AC motors with a maximum voltage of 500V AC and an output current of up to 2A is provided. This device features a control voltage of 24V DC, allowing for adjustable overload shutdown protection as well as an emergency stop function that meets the SIL 3/PL e safety standards. The motor starter also employs screw connections for easy installation and setup.
Specifications
Motor Component
Hybrid Motor Starter
Motor Function
Motor Protection
Motor Function
Emergency Stop-Shutdown
Motor Connection Method
Screw Connection
Motor Approval
IEC 61508
Motor Approval
ISO 13849
Motor Output Voltage
500 VAC
Motor Input Voltage
24 VDC
Motor Function
Reverse Motor
Motor Approval
DIN EN 50178
Motor Approval
EN 60947
Manufacturer
Phoenix Contact
Motor Load Current

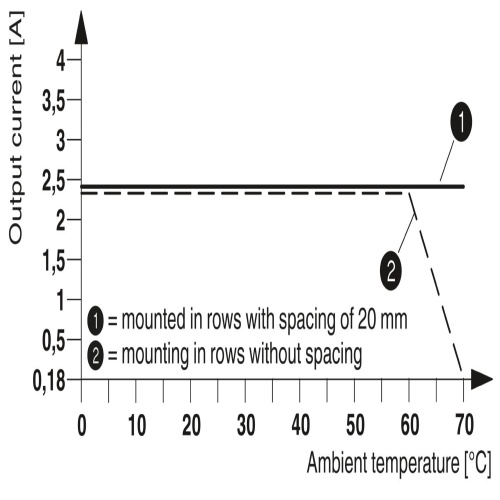

180 Mamp - 2.4 Amp (See To Derating)
Features
Long service life
Safety level in accordance with IEC 61508-1: SIL 3, ISO 13849: PL e
Reduction in wiring
22.5 mm wide
Space saving
3-phase loop bridges
Adjustable current for bimetal function
Low-wear switching
