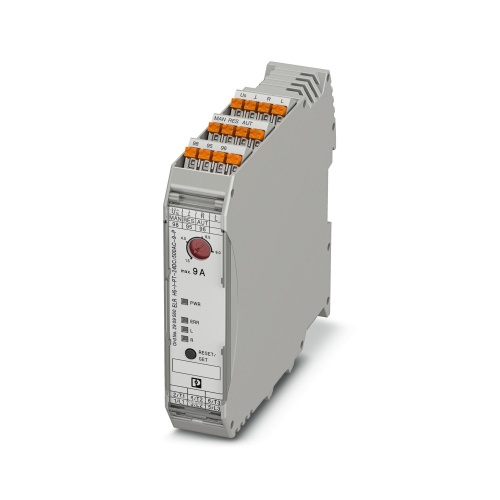

Phoenix Contact 2909560 Hybrid motor starter ELR H5-I-PT- 24DC/500AC-9-P
Normally In Stock
Code: 83060
Phoenix 2909560 Start motor,Motor protection,Reverse motor 1.5 Amp - 9 Amp Push-in connection Hybrid motor starter
Condition: New
Usually ships Same Day or Next Day$257.99
Sale Price
$214.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2909560 The hybrid motor starter presents a viable alternative to traditional reversing contactors, specifically designed for controlling AC motors with ratings between 3A and 9A, while also providing built-in motor protection. Additionally, this device allows for the possibility of expanding the power supply and relay options via a DIN rail connector, enabling users to customize their setup according to their needs.
Specifications
Motor Component
Hybrid Motor Starter
Motor Function
Start Motor
Motor Function
Motor Protection
Motor Output Voltage
500 VAC
Motor Input Voltage
24 VDC
Motor Function
Reverse Motor
Motor Approval
EN 60947-4-2
Motor Connection Method
Push-In Connection
Motor Approval
EN 60947-1
Manufacturer
Phoenix Contact
Motor Load Current
1.5 Amp - 9 Amp
Features
Fast wiring, thanks to integrated locking circuit and load wiring
Adjustable motor protection with bimetal function up to 9 A
Flexible and straightforward fieldbus connection with a suitable gateway
Easy group shutdown via DIN rail connectors after an emergency stop with an upstream safety relay
Motor starters are part of the COMPLETE line system
