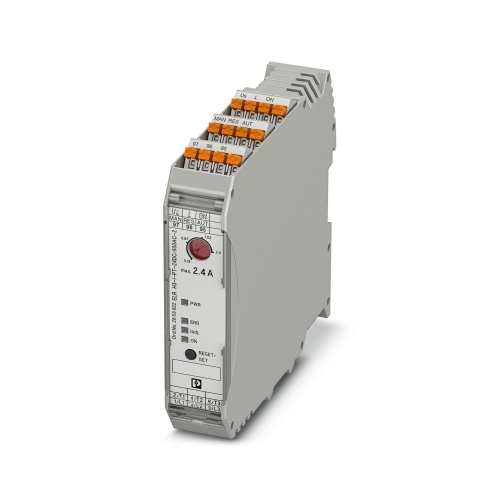

Phoenix Contact 2903922 Hybrid motor starter ELR H3-I-PT- 24DC/500AC-2
Normally In Stock
Code: 83056
Phoenix 2903922 Start motor,Motor protection,Emergency Stop/Shutdown 180 mAmp - 2.4 Amp (see to derating) Push-in connection Hybrid motor starter
Condition: New
Usually ships Same Day or Next Day$242.70
Sale Price
$202.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2903922 The device is a hybrid motor starter specifically designed to handle 3-phase AC motors with an output current of up to 2.4 amps and a maximum voltage rating of 500V AC, controlled by a 24V DC power source that also features adjustable overload protection and a convenient push-in connection system.
Specifications
Motor Component
Hybrid Motor Starter
Motor Function
Start Motor
Motor Function
Motor Protection
Motor Function
Emergency Stop-Shutdown
Motor Approval
IEC 60947-1
Motor Approval
IEC 60947-4-2
Motor Approval
IEC 61508
Motor Approval
ISO 13849
Motor Output Voltage
500 VAC
Motor Input Voltage
24 VDC
Motor Connection Method
Push-In Connection
Manufacturer
Phoenix Contact
Motor Load Current

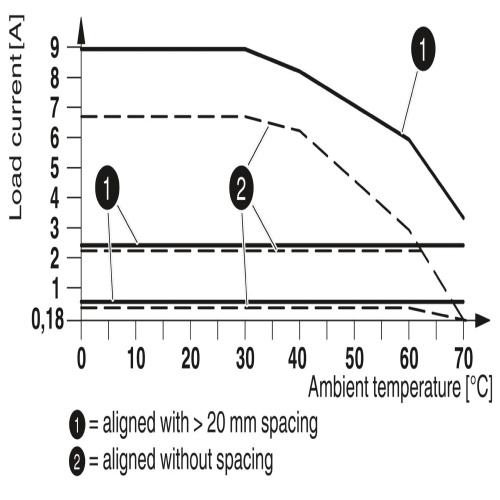

180 Mamp - 2.4 Amp (See To Derating)
Features
Fast wiring, thanks to integrated locking circuit and load wiring
Adjustable motor protection with bimetal function up to 9 A
Flexible and straightforward fieldbus connection with a suitable gateway
Easy group shutdown via DIN rail connectors after an emergency stop with an upstream safety relay
Motor starters are part of the COMPLETE line system
