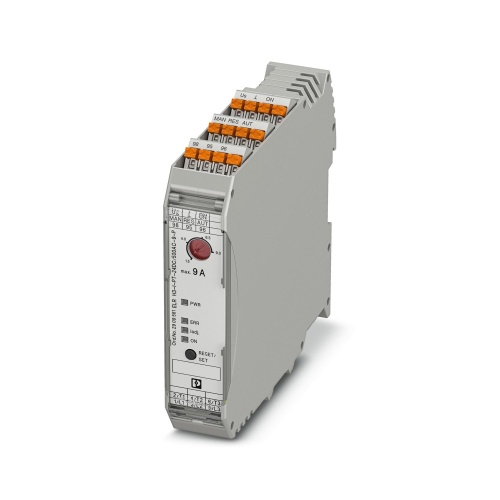

Phoenix Contact 2909561 Hybrid motor starter ELR H3-I-PT- 24DC/500AC-9-P
Normally In Stock
Code: 83043
Phoenix 2909561 Start motor,Motor protection 1.5 Amp - 9 Amp Push-in connection Hybrid motor starter
Condition: New
Usually ships Same Day or Next Day$244.03
Sale Price
$203.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2909561 A hybrid motor starter provides a versatile and efficient alternative to traditional contactor circuits, capable of handling three-phase AC motors with currents up to 9 amps and offering built-in motor protection. Additionally, it enables flexible supply and relay configurations through the use of a DIN rail connector, allowing for easy extension and customization options.
Specifications
Motor Component
Hybrid Motor Starter
Motor Function
Start Motor
Motor Function
Motor Protection
Motor Output Voltage
500 VAC
Motor Input Voltage
24 VDC
Motor Approval
EN 60947-4-2
Motor Connection Method
Push-In Connection
Motor Approval
EN 60947-1
Manufacturer
Phoenix Contact
Motor Load Current
1.5 Amp - 9 Amp
Features
Fast wiring, thanks to integrated locking circuit and load wiring
Adjustable motor protection with bimetal function up to 9 A
Flexible and straightforward fieldbus connection with a suitable gateway
Easy group shutdown via DIN rail connectors after an emergency stop with an upstream safety relay
Motor starters are part of the COMPLETE line system
