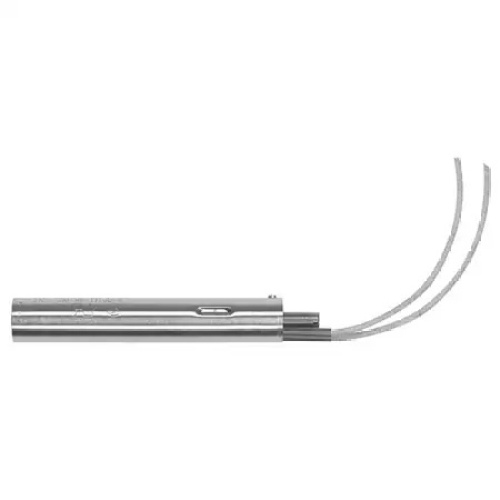

Cartridge and Hex Head Immersion (17000 Series)

Additional Features• Adjustable range from -73 to 316°C (-100 to 600°F) offers wide field of application

• Resolution sensitivity of -0.1°C (0.1°F) offers close control of process • Compact size

lengths under 127 mm (5") and diameters less than 20.6 mm (13⁄16") fit almost any application • Fast response as external metal shell expands or contracts with each temperature change • Sheathing is brass for low range units

stainless steel for higher temperature use • Couplings for hex head and coupling head types are brass with standard pipe threads for mounting. Hex head and coupling head immersion types are screwed directly through the threaded opening in tank or duct or directly into a pipeline containing gas or liquid. The coupling head unit may be directly attached to electrical conduit by means of standard male pipe threads.

ApplicationsDies, Heat Sealing, Hot Melt Adhesive Machinery, Labeling, Molds, Packaging, Platens

Number of Phases1

Operating Temperature, Min-73 °C

Sheath Material321 Stainless Steel

Supply Voltage120/240 Vac

Adjustable range from -73 to 316°C (-100 to 600°F) offers wide field of application . Resolution sensitivity of - 0.1°C (0.1°F) offers close control of process

Compact size lengths under 127 mm (5") and diameters less than 20.6 mm (13.16") fit almost any application

Fast response as external metal shell expands or contracts with each temperature change

Sheathing is brass for low range units stainless steel for higher temperature use

Couplings for hex head and coupling head types are brass with standard pipe threads for mounting. Hex head and coupling head immersion types are screwed directly through the threaded opening in tank or duct or directly into a pipeline containing gas or liquid. The coupling head unit may be directly attached to electrical conduit by means of standard male pipe threads.
