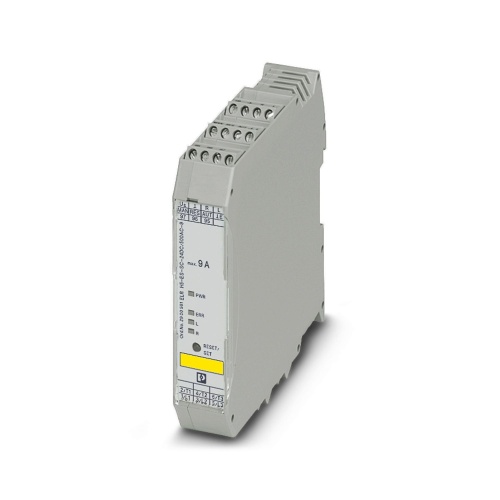

Phoenix Contact 2900561 Hybrid motor starter ELR H5-ES-SC- 24DC/500AC-9
Normally In Stock
Code: 83023
Phoenix 2900561 Start motor,Motor protection,Reverse motor,Emergency Stop/Shutdown 1.5 Amp - 9 Amp (see to derating) Screw connection Hybrid motor starter
Condition: New
Usually ships within 7-14 days. Call for ship time.$278.36
Sale Price
$231.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2900561 A hybrid motor starter designed for use with reversing 3-phase AC motors that can handle up to 550V AC voltage, powered by a 24V DC input source, producing an output of 9 amps current, and featuring an emergency stop function.
Specifications
Motor Component
Hybrid Motor Starter
Motor Function
Start Motor
Motor Function
Motor Protection
Motor Function
Emergency Stop-Shutdown
Motor Connection Method
Screw Connection
Motor Approval
IEC 60947-1
Motor Approval
IEC 61508
Motor Approval
ISO 13849
Motor Output Voltage
500 VAC
Motor Input Voltage
24 VDC
Motor Function
Reverse Motor
Motor Approval
EN 60947-4-2
Manufacturer
Phoenix Contact
Motor Load Current
1.5 Amp - 9 Amp (See To Derating)
Features
Reduction in wiring
Safety level in accordance with IEC 61508-1: SIL 3, ISO 13849: PL e
Space saving
22.5 mm wide
Long service life
3-phase loop bridges
Low-wear switching
