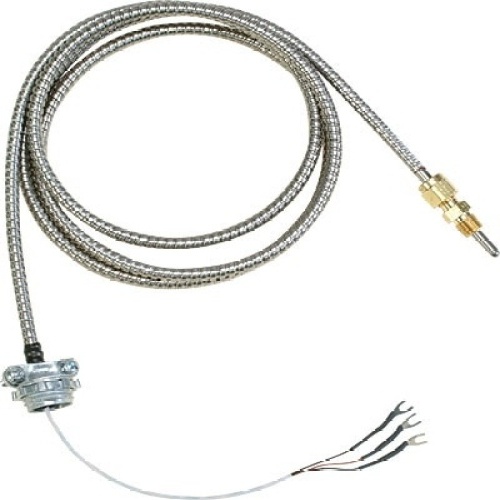

Omega CFTF-090-RTD-4-60-2 Extruder Thin Film RTD Probe
Normally In Stock
Code: 828995
Omega CFTF-090-RTD-4-60-2 Extruder Thin Film RTD Probe
Condition: New
Usually ships Same Day or Next Day$161.50
Sale Price
$134.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Extruder Thin Film RTD Probe, 90 ° Angle, CM Fitting, 1/8 " NPT, 3 Prong STD CONN, -50 °C to 260 °C, Class B, 0.187 " x 4 " Probe, 60 " Cable, 3 Wires, 304 SS, Immersion, 100 Ω, CFTF, Each
Specifications
Manufacturer
Omega Engineering
(Instrument-Sensor) Type
RTD
Component
Extruder Thin Film RTD Probe
Features
Sensors Contain Precision 100 Ohm Class B DIN Platinum Thin Film Elements in 3-Wire Configurations
Standard Temperature Range is -50 to 260ºC. Optional High Temperature (500ºC) Fiberglass Insulated Cable Construction is Available
These RTD Sensors are Ideal For Plastic Process Equipment and Other Rugged Environments
Probe is Made of 304SST With a 3/16' Diamater, Lenghts Are As Specified in The Model Numbers, All Models Include PFA Insulated, PFA Jacketed Cables With SST Flex Amor.
AccuracyClass B
Nominal Resistance100 Ω
Nominal Resistance/Curve Note100 Ω Class “B” Thin-Film
DIN Platinum Element
Number of Wires3
Probe Diameter0.1875 in
Probe TypeExtruder RTD Probes with Compression Fittings
Process Connection Size1/8 in
Process Connection TypeNPT Male
Sensing Element100 Ω Class “B” DIN Platinum Element
Sheath Material304 Stainless Steel
Temperature Probe StyleImmersion Probe
Temperature Sensor TypeRTD
Wire Gauge26 AWG
Wire TypeStranded
