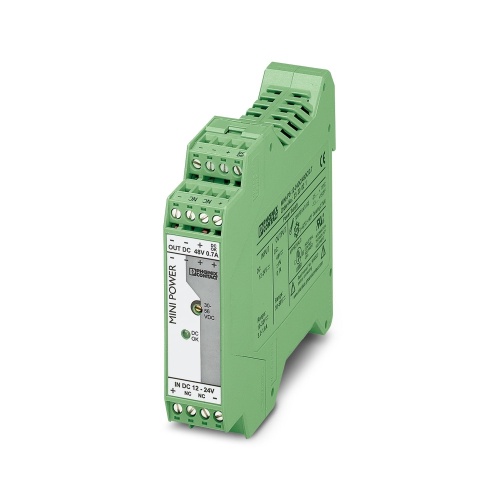

Phoenix Contact 2320021 DC/DC converter MINI-PS- 12- 24DC/48DC/0.7
Normally In Stock
Code: 824
MINI-PS- 12- 24DC/48DC/0.7 Phoenix Contact MINI-PS- 12- 24DC/48DC/0.7. DC-DC converter(Class 1 Div 2) .7A with 10-32Vdc input and 48 VDC output. Temperature range of -13 F to 158 F. Din rail mount. (3.9"H x .89"W x 4.21"D).
Condition: New
Usually ships Same Day or Next Day$319.52
Sale Price
$266.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2320021 For the installation of new systems, please utilize the 1098676 Primary-switched MINI DC/DC converter that is mounted on DIN rails and accepts an input voltage range of 12-24V DC, delivering a regulated output voltage of 48V DC at a maximum current rating of 0.7A.
Specifications
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
48 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
0.7 Amp
Manufacturer
Phoenix Contact
Line
MINI
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
10 VDC - 32 VDC
Component
DC-DC
Features
Support conversion to various voltage levels
Constant voltage: output voltage regenerated even at the end of long cables
Electrical isolation: for setting up independent supply systems
Downloads
Phoenix 2320021 CAD data International.dxfPhoenix 2320021 CAD data International.pdfPhoenix 2320021 CAD data International.stpPhoenix 2320021 CAD Drawing.dxfPhoenix 2320021 Data Sheet English.pdfPhoenix 2320021 Manufacturers declaration International-2.pdfPhoenix 2320021 Manufacturers declaration International.pdfPhoenix 2320021 Package Slip International.pdfPhoenix 2320021 Product Information English.pdfPhoenix 2320021 Spec Sheet.pdfPhoenix 2320021 Tender Text English.zipPhoenix 2320021 User Manual.pdfPhoenix 2320021 Various English.pdf
