Phoenix Contact 0803102 Shrink sleeve WMS 3,2 (60X5)RXL YE
Normally In Stock
Code: 82092
WMS 3,2 (60X5)RXL YE WMS 3,2 (60X5)RXL YE Phoenix Contact 0803102 yellow Roll Shrink sleeve
Condition: New
Usually ships Same Day or Next Day$1590.85
Sale Price
$1325.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

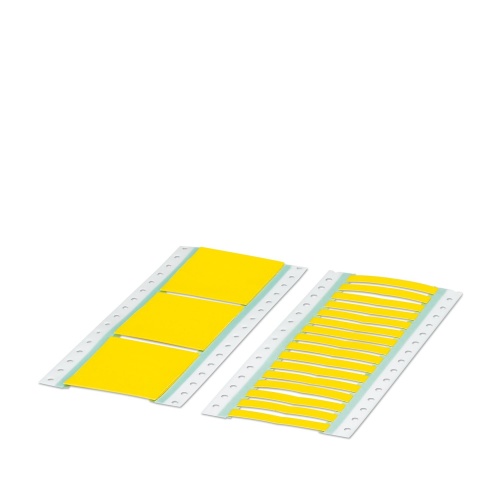

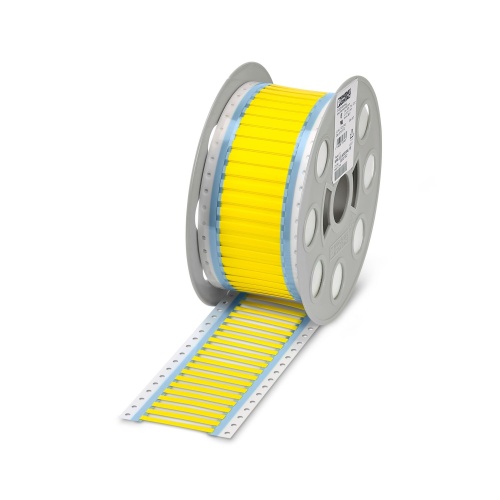

Phoenix Contact 0803102 A shrink sleeve with a yellow roll is an unlabeled product that can be labeled using various THERMOMARK products such as the ROLLMASTER and X1 series, or the W series. The cable diameter range is between 1 to 3.2 millimeters, and the sleeve has no perforations for mounting. It features a slide-on mounting type with individual labels available in quantities of up to 2500, featuring text fields that are 5mm tall and 60mm wide.
Specifications
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
Slide-On
Marking Color
Yellow
Marking Width
5 mm
Component
Wire Heat Shrink Label
Manufacturer
Phoenix Contact
Marking Lettering Field Size
60 mm X 5 mm
Features
High diameter coverage with a shrink ratio of 3:1
Ladder style design: For a good overview and to facilitate quick use, the sleeves are preassembled in cut lengths: 15 mm, 30 mm, or 60 mm
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position
Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
