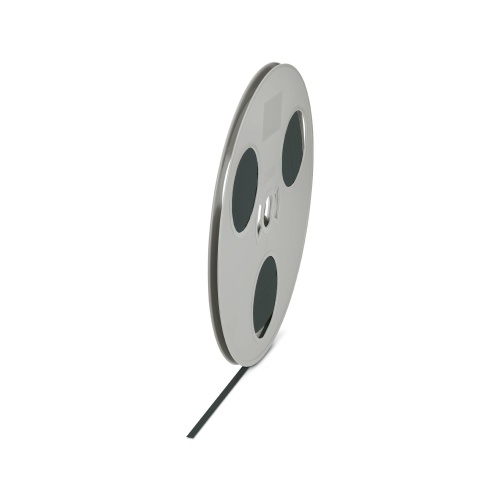

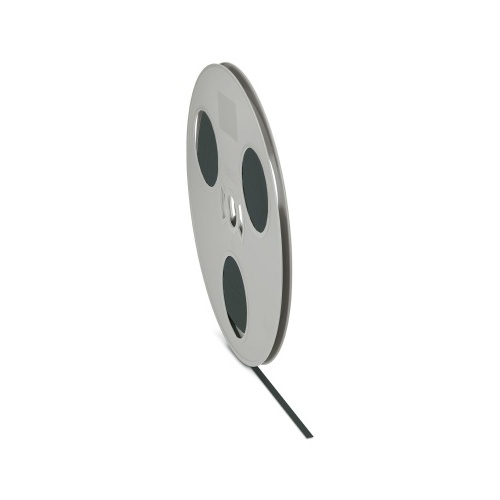

Phoenix Contact 0800429 Shrink sleeve WMS 4,8 (EX9)RL BK
Normally In Stock
Code: 82022
WMS 4,8 (EX9)RL BK WMS 4,8 (EX9)RL BK Phoenix Contact 0800429 black Roll Shrink sleeve
Condition: New
Usually ships Same Day or Next Day$809.54
Sale Price
$674.62
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0800429 A shrink sleeve or roll with a black, unlabeled surface can be labeled with various THERMOMARK products including the E.SLEEVE and ROLLMASTER lines. The cable diameter range is between 1.6 to 4.8 mm, with unperforated slits for mounting via slide-on installation. For automated processing, the maximum cable diameter is up to 4.5 mm. Individual labels are available in one unit size, and the roll length is 120 meters, with text fields measuring 9mm in height and 12,000,000mm in width.
Specifications
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
Slide-On
Marking Width
9 mm
Marking Printing System
THERMOMARK W
Marking Color
Black
Manufacturer
Phoenix Contact
Marking Lettering Field Size
Continuous X 9 mm
Component
Wire Heatshrink Label
Features
Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
High flexibility, as individual marker lengths ranging from 3.45 mm ... 2000 mm (0.14" ... 78.7") can be realized in combination with the cutter and perforation cutter
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position
High diameter coverage with a shrink ratio of 3:1
Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
