Phoenix Contact 0800303 Shrink sleeve WMS 6,4 (EX10)R YE
Normally In Stock
Code: 81974

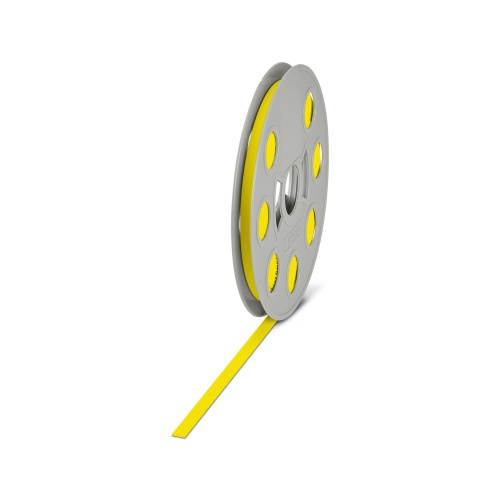

WMS 6,4 (EX10)R YE WMS 6,4 (EX10)R YE Phoenix Contact 0800303 yellow Roll Shrink sleeve
Condition: New
Usually ships Same Day or Next Day$182.96
Sale Price
$152.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0800303 A shrink sleeve with a yellow color can be labeled using various THERMOMARK products including the E.SLEEVE, ROLLMASTER, ROLL X1, and W series. The sleeves have an unperforated design that mounts via slide-on method. Available cable diameters range from 2.1 to 6.4 mm for manual processing and 2.1 to 6 mm for automated processing. One individual label can be applied per sleeve, with a maximum roll length of 25 meters. The text field is 10mm high and 25,000mm wide.
Specifications
Marking Print Medium
Roll
Marking Mounting Type
Slide-On
Marking Color
Yellow
Marking Width
10 mm
Marking Printing System
THERMOMARK W
Manufacturer
Phoenix Contact
Marking Lettering Field Size
Continuous X 10 mm
Component
Wire Heatshrink Label
Features
High diameter coverage with a shrink ratio of 3:1
High flexibility, as individual marker lengths ranging from 3.45 mm ... 2000 mm (0.14" ... 78.7") can be realized in combination with the cutter and perforation cutter
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position

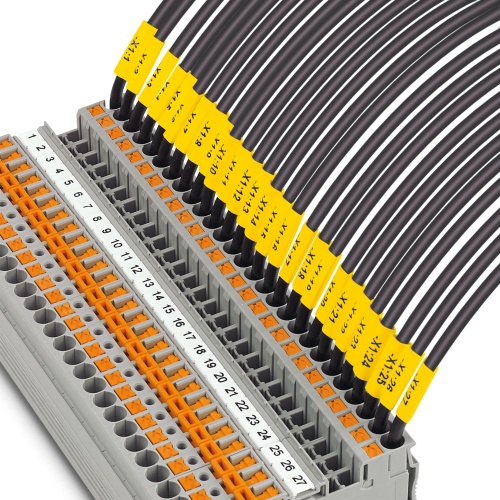

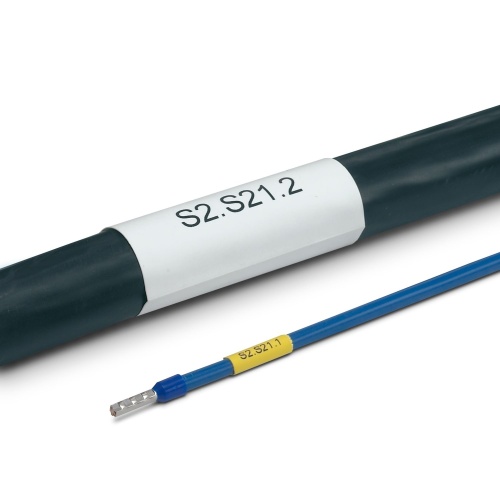

Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
